Nokia Hardware Repairing Technics By IMEI Source

[josher]

RM-84_dp_v10.0_SW5.0737.3.0.1_APAC
RM-84_dp_v13.0_SW_5.0737.3.0.1_EURO

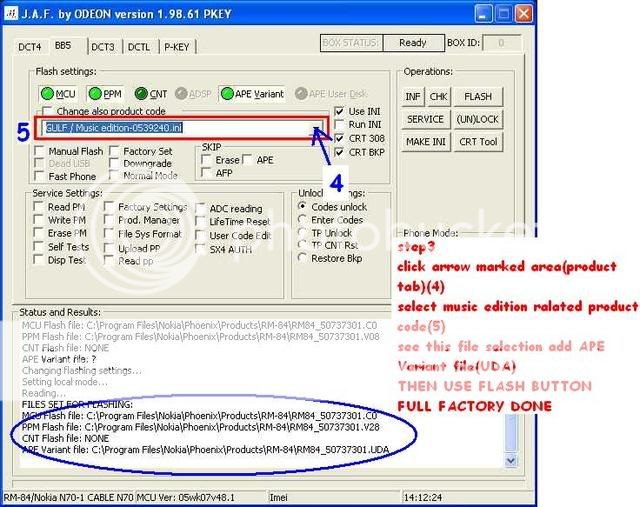

AND CHECK THIS SCREEN SHOT PICTURE
SAME METHODE LIKE N73



[josher]

DON'T MISS IT !​

FOR ALL FRIENDS
6300 all solution exe



TO DOWNLOAD THIS EXE
FOLLOWING LINKS

http://www.4shared.com/file/80367881...NJMFpart6.html
http://www.4shared.com/file/80367887...NJMFpart4.html
http://www.4shared.com/file/80367886...NJMFpart5.html
http://www.4shared.com/file/80367890...NJMFpart1.html
http://www.4shared.com/file/80367891...NJMFpart2.html
http://www.4shared.com/file/80367889...NJMFpart3.html

DON'T FORGET TO PRESS THANKS



[josher]

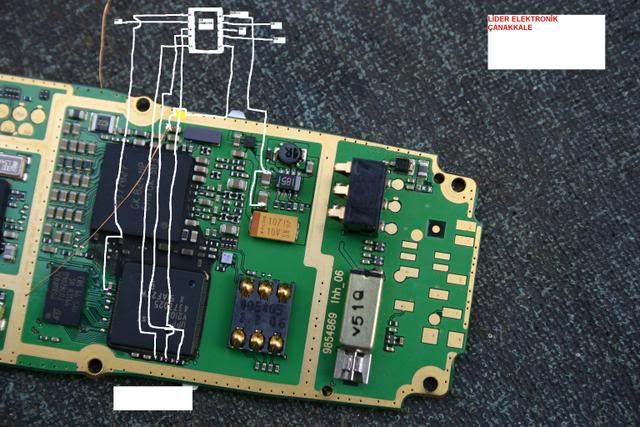

NOKIA 2600 DISPLAY WAYS HERE
AFTER CHECKING WAYS?
WAYS R 100% OK BUT NO DISPLAY REMOVE OR CHANGE DISPLAY WAYS REALERTED COMPONTENT

NOKIA 5320 SCHECMATICS AM NOT PREPAIR TODAY I WILL PREPAIR THEN GIVE U SOLUTION JUST WAIT



[josher]

working solution for 5310 camera on standby



[josher]

n73. problem is when i switch on the phone its automaticly switch on the back camera.



[josher]

MY OTHER TECHNICS WITH NOKIA 6500S,5610 ETC.....RESTART SOLVED WITH OUT FLASHING

MANY NOKIA BB5 PHONES SHOW RESTART,NOKIA LOGO ONLY,TIME AND DATE FIXING TIME RESTARTED,HAND SHAKE TIME RESTARTED ETC............
HOW TO SOLVED THIS PROBLEM VIA JAF WITH OUT FLASHING
STEP1-REMOVE BACK COVER AND BATTERY
SETP2-FIX 7.1 RESISTER LIKE THIS PICTURE
(BSI TO GND FIX THIS 7.1 RESISTER WITH BATTERY)

STEP3-INSERT BATTERY WITH HANDSET
STEP4-POWER ON THE PHONE
STEP5-THIS TIME PHONE SHOW LOCAL MODE
STEP6-CONNECT USB CABLE

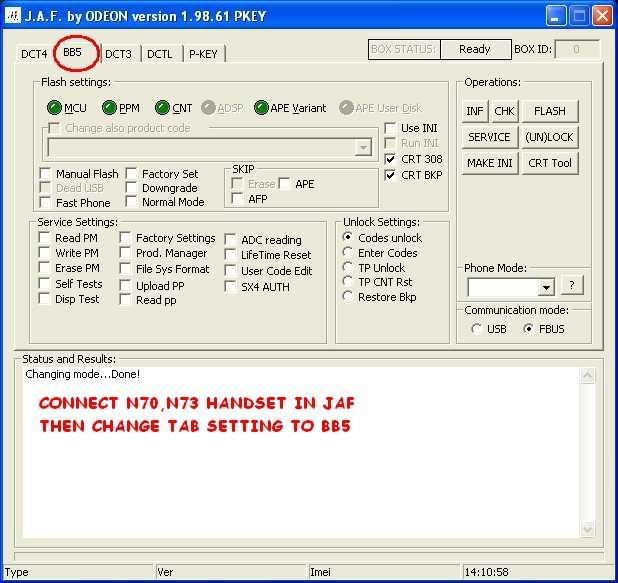

STEP7-OPEN JAF SOFTWARSTEP8-SELECT COMMUNICATION MODE TO USB
STEP9-USE FULL FACTORY RESET(FACTORY RESET DONE)
STEP10-DISCONNECT PHONE THEN POWER ON WITH OUT SIM
STEP11-GO PHONE SETTINGS RESET COMPLETE PHONE
UR PROBLEM SOLVED 100%.............
TESTED BY ME ABOVE 1000 PHONES
CNT FILE MAKE THIS RESTART PROBLEM



[josher]

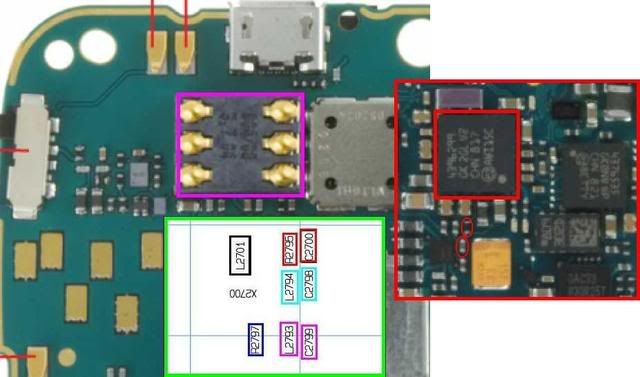

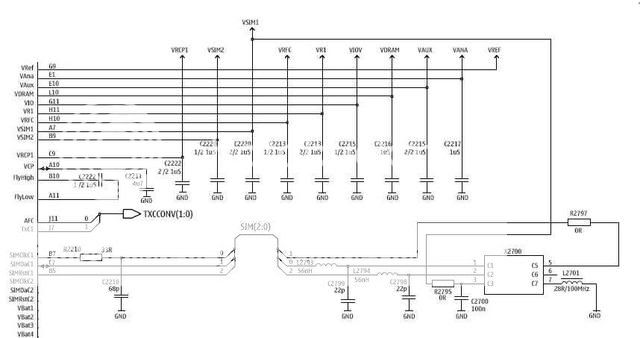

n79i insrt sim

remove sim tray then check inside compontent marked resister,coil,capacitor etc..............



[josher]

nokia n70 no network

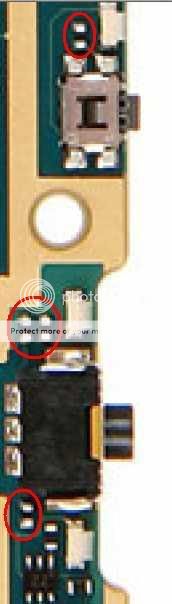

FIRST CHANGE THIS CAPACITOR LIKE THIS PICTURE

SAME NO ACCESS PROBLEM FACED CHANGE PA



[josher]

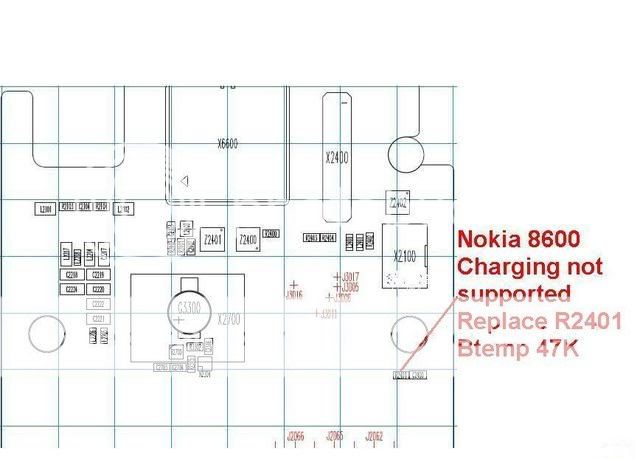

nokia 8600 charger not supported solution via pm
here solution



[josher]

nokia 5200 battery connector print r damage completely



[josher]

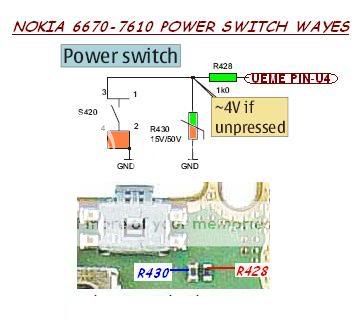

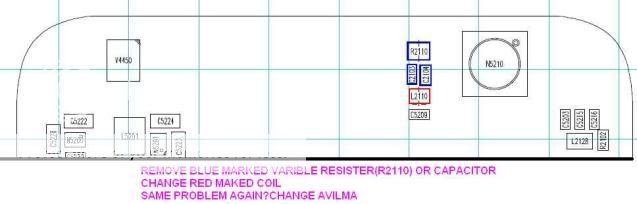

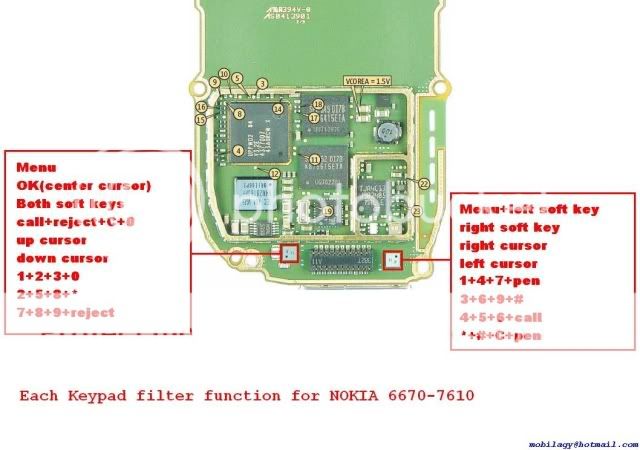

7610 that's button on/off automaticly pressed.

1)remove on/off switch
then insert battery this time phone trun on automatically?
try to removed R430 veriable resister
same again?remove UEM then check on/off ways shot to gnd
no shot 100%UEM fault this
some times inside pc layer shotage phone show this problem
post result



[josher]

n77 very low earpiece volume..



[josher]

nokia 3250 sel hang or sometimes nokia logo standby problem.

NORMALY SMPS GENARATED VCORE VOLT 1.4
BUT 3250,6300,3110C ETC.............THIS VOLT GENERATED BY TAHVO
TAHVO NOT GENARATED THIS VOLT PROPERLY PHONE SHOW THIS PROBLEM.
THIS SAME CAUSE 6300 SIDE BLUE LIGHT BLINKING 50%SOLVED VIO TO VCORE SHOTING.
JUST TRY THIS SAME METHODE 3250 NON BOOTING PROBLEM.
APE OR CMT FLASH INCLUDING ONE CHIP(COMBO MEMORY)
AFTER MAKE THIS JUMBER PHONE SHOW SAME PROBLEMS
U MUST CHECK TAHVO OR COMBO MEMORY

POST RESULT



[josher]

n70 handsfree not working jack is already ok what is solution



[josher]

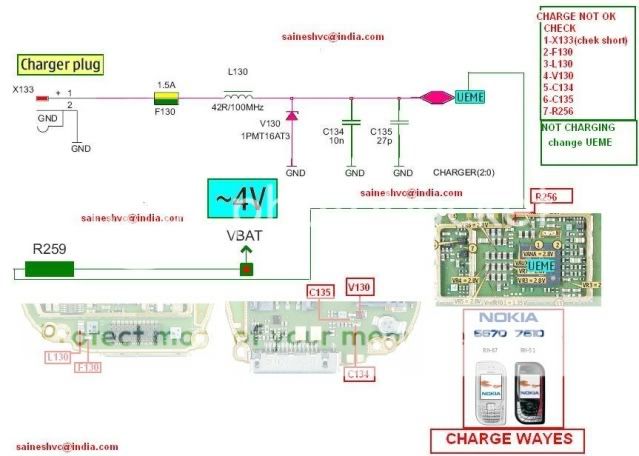

7610 not charge and give 6.6 volt

here not charging solution

here keypad complete ways
