Nokia Hardware Repairing Technics By IMEI Source

[josher]

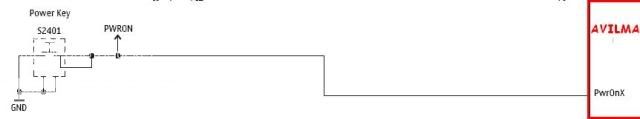

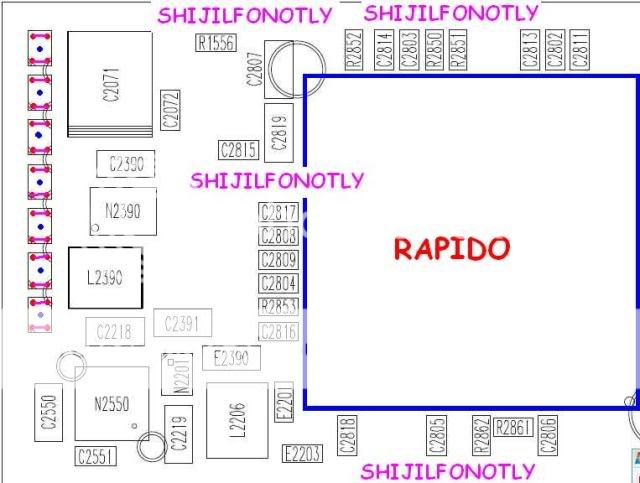

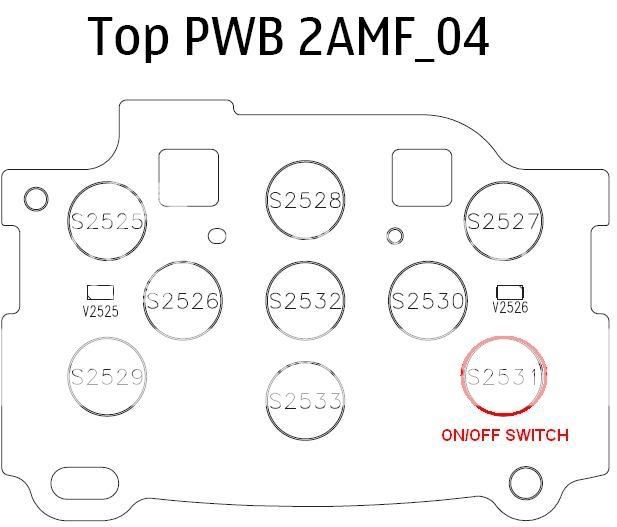

Nokia 6233 on/off switch jumper

ON/OFF SWITCH WAYS



[josher]

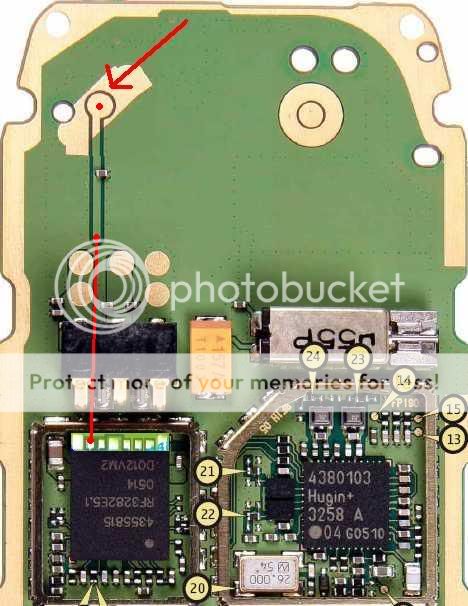

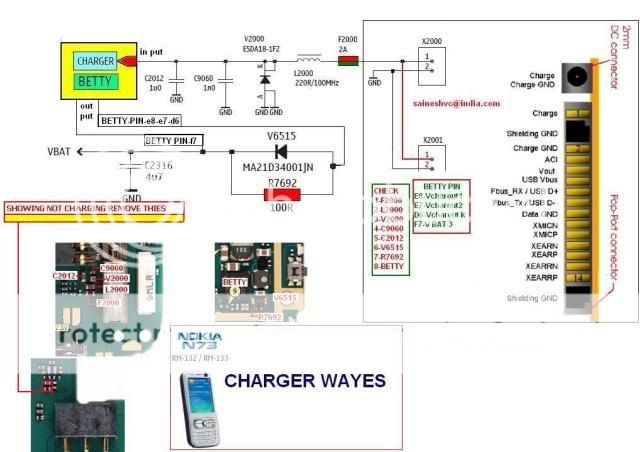

solution for n73 not charging



[josher]

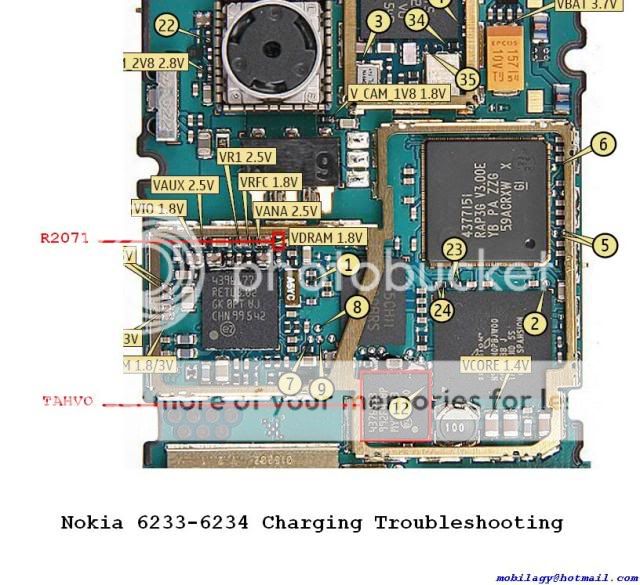

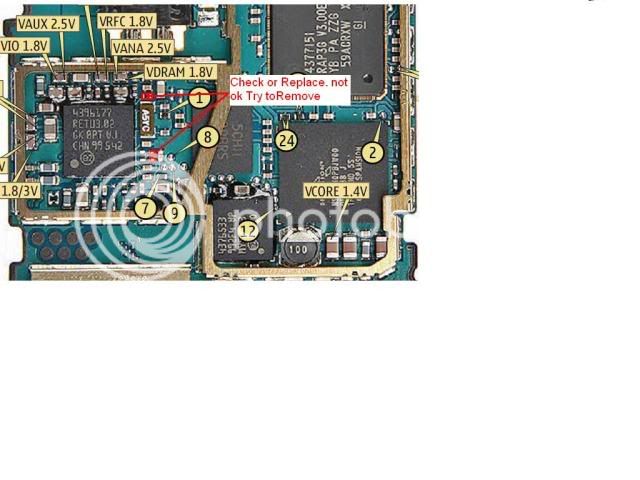

Nokia 6233 says " charger not supported"



[josher]

TESTED BY ME

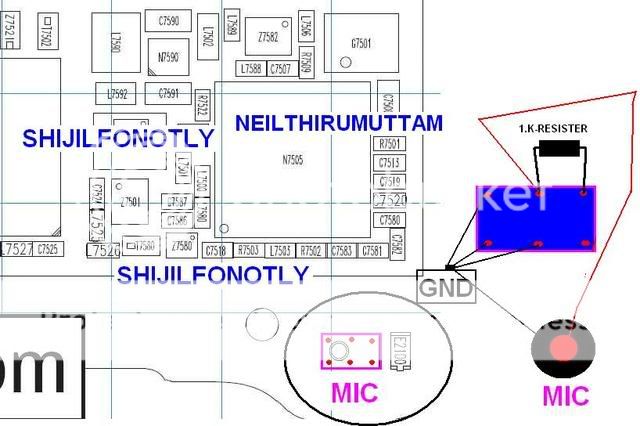

NOKIA 6110 NAVI MIC SOLUTION



[josher]

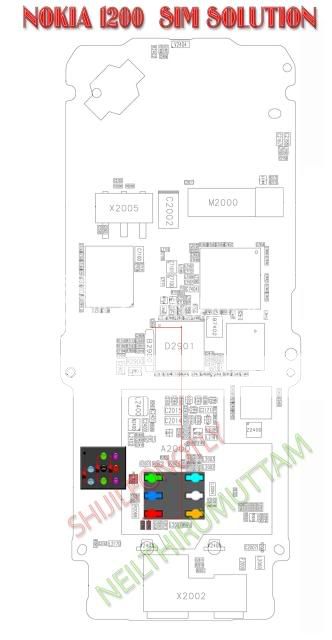

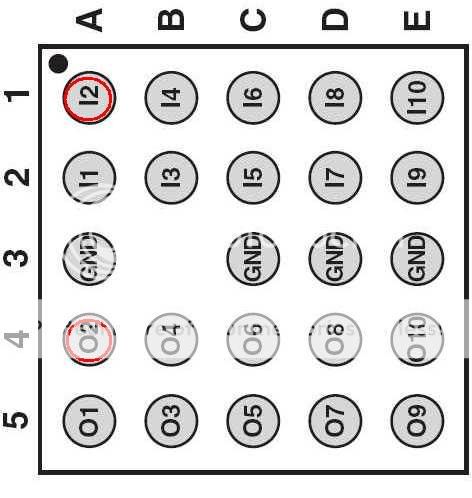

1200 insert sim;change sim ic in again again

check vsim ways



[josher]

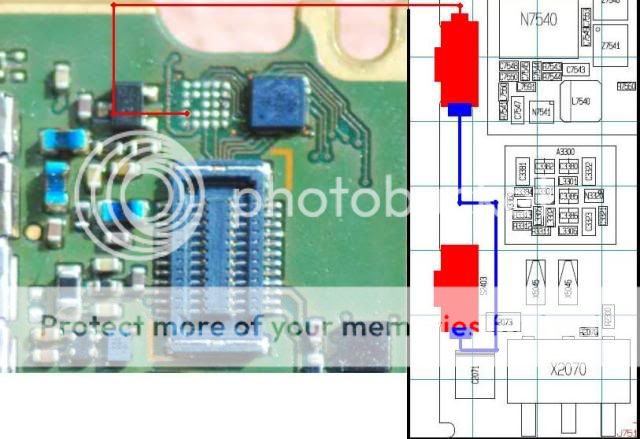

jumper ic display nokia 6300



[josher]

N70,N72 NO OPERATOR FOUND SOLUTION REPAIRING STEP BY STEP

1)PUT SIM THEN GO MENU+TOOL+SETTING+NETWORKSETTINGS
CHANGE THIS MODE GSM
THEN CHECK PHONE NETWORK STATUS SAME NET WORK PROBLEM???
2)(A)GO MENU+TOOL+SETTING+NETWORKSETTINGS
CHANGE OPERATOR SELECTION
AUTOMATIC TO MANUUL MODE
THIS TIME PHONE GOING TO SHOT SEARCH?THEN SHOW NO OPERATOR FOUND MESSAGE?

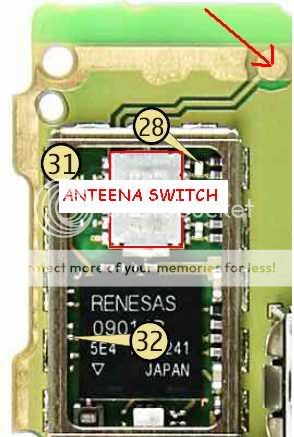

CHECK AN****A PAD OR AN****A PAD INTERFACE
40%AN****A SWITCH PROBLEM CHNAGE (AN****A SWITCH)

2)(B)MANNUL SEARCHING TIME PHONE GOING TO LONG SEARCH?

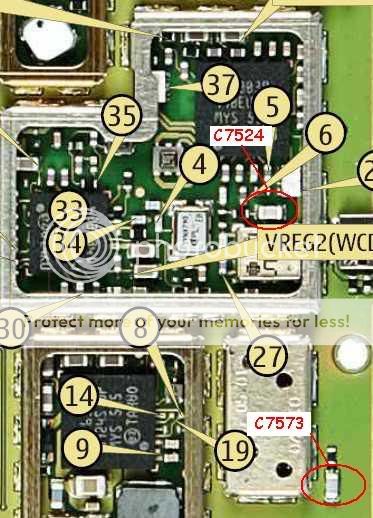

FIRST CHANGE, C7524 OR C7573 CAPACITOR

AFTER CHANGE THIS CAPACITOR SAME CONDITION UR PHONE?

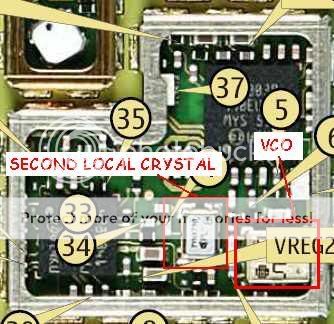

SECOND CHECK OR CHNAGE G7500 VCO OR SECOND LOCAL CRYSTAL(38.4Mhz)

NOT SOLVED UR PROBLEM?

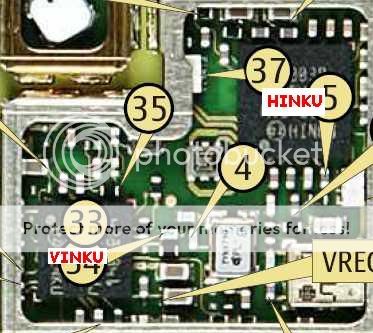

REBALL OR CHANGE VINKU



[josher]

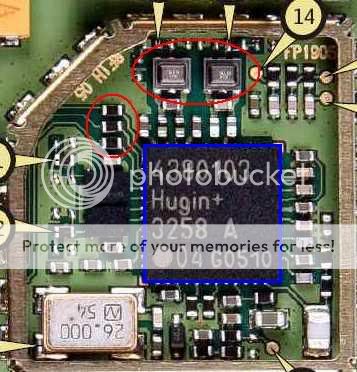

1600 with no network

1)CHECK AN****A
2)CHECK OR CLEAN AN****A CONNECTOR

3)CHECK PA POWER INPUT WAYS

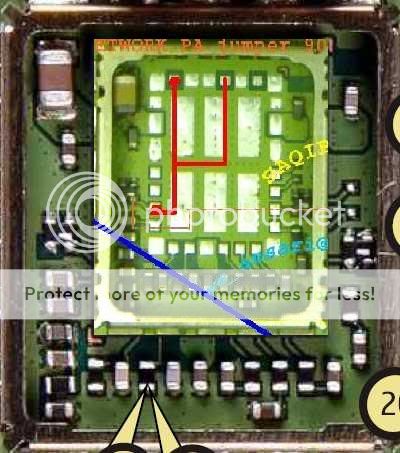

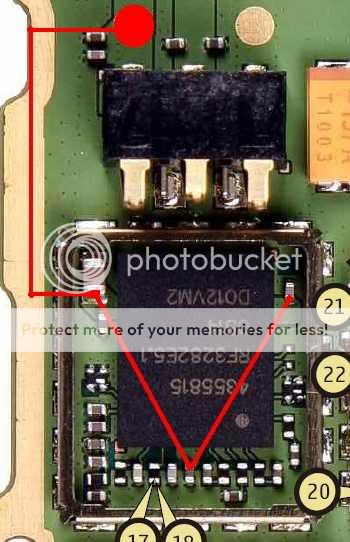

4)REMOVE PA THEN MAKE JUMBER LIKE THIS PICTURE

AFTER FIX THIS JUMBER!PHONE SHOW SAME NET NO ACCESS PROBLEM?

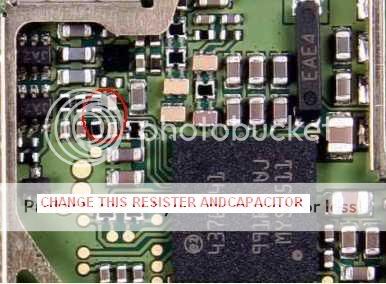

5)JUST CHANGE RED MARKED RX FILTER OR RESISTER(TX CONTROLL)
LAST TRY TO CHANGE RF IC

ONE THINK UEM OR UPP MAKE NET WORK PROBLEM
65%PROBLEM SOLVED THIS METHODE
20M
15%UPP

FRIENDS PA JUMBER NOT PERMENT SOLUTION CHANGING IS BATTER



[josher]

power key dont work in 6500
charger insert time phone show charging

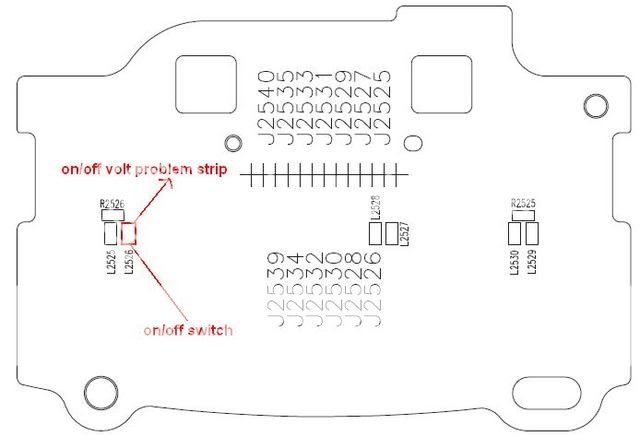

change strip then check this parts in front pannel
here this picture



[josher]

need 6120 power switch

6120C NO JUNCTION ON/OFF WAYS
U MUST DRAG PCB IN VOLT AREA
BROKEN PRINT ARAE SURELY INSIDE CONNECTION JUST TRY
NO OTHER WAY
CHECK THIS PICTURE



[josher]

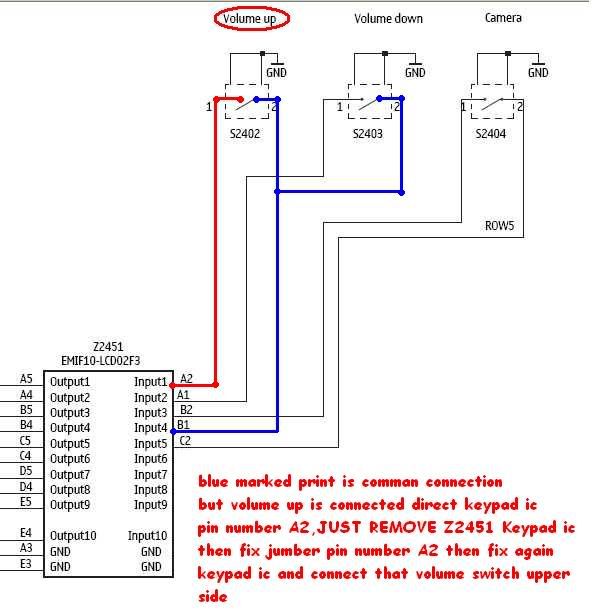

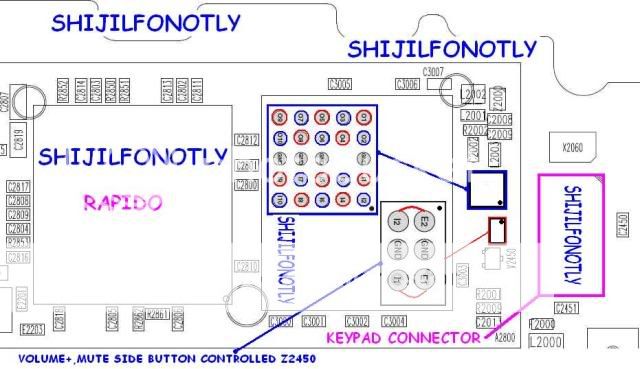

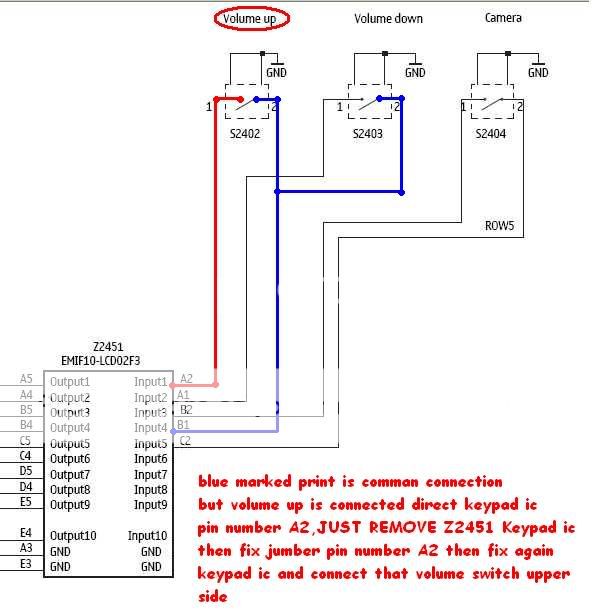

6120c about volume up , i miss one connector at left on pcb

POST RESULT



[josher]

1. BSI line is not connected properly in connector -> Check cable, also for 3.3k resistor in serial with bsi line.
2.UEM damaged -> replace UEM.

THIS ERROR MAINLY BSI LINE RELATED PROBLEM
STEP-1--CHANGE BATTERY
STEP-2--RESOLDRING BATTERY CONNECTOR
STEP-3--REMOVE BSI LINE RELATED CAPACITOR OR VERISTER

STEP-4--CHECK BATTERY CONNECTOR BSI TO BSI LINE RESISTER WAYS

STEP-5--REMOVE BSI RESISTER(vr5)

SAME PROBLEM AGAIN CHANGED vr5 RESISTER
STEP-6--CHANGE BOTTOM EASY CABLE PORT CONNECTOR
PROBLEM SAME REBALL OR CHANGE UEM
POST RESULT



[josher]

E 51 Display Ways or Display ic Location On bord..



[josher]

..........:::::::::::NOKIA-E51KEYPAD SOLUTION::::::::::..........



[josher]

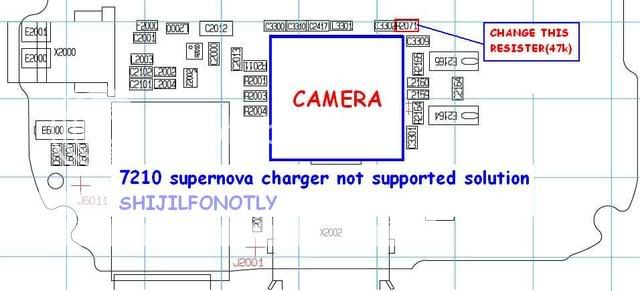

NOKIA 7210 SUPERNOVA CHARGER NOT SUPPORTED SOLUTUION
