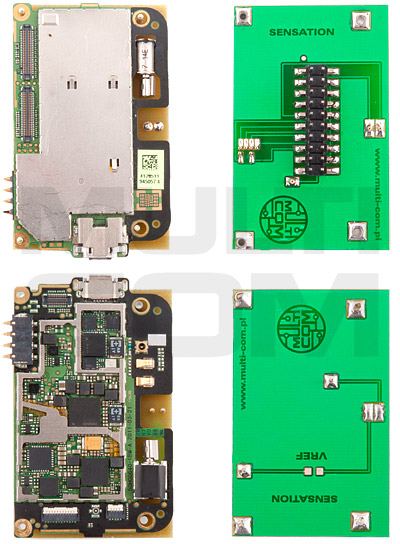

JTAG JIG PCB for HTC Sensation XL

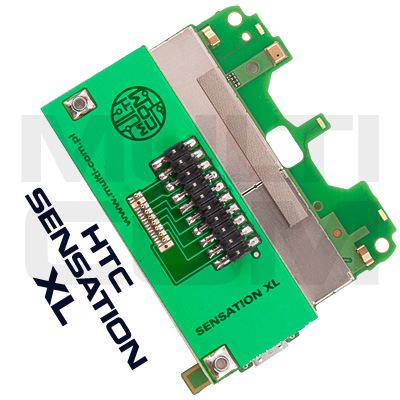

Photo of adapter:


Photo of mounted adapter:



Link to product: JTAG HTC Sensation XL
Link to video on Youtueb from Riff connection: HTC Sensation XL - JTAG/RIFF connection unbrick (repair dead boot) - YouTube

J

josher

Well-known Member
Joined
Sep 5, 2010
Posts
6,745
Likes
176
JTAG Samsung Nexus S (i9020/i9023)



NOKOUT:

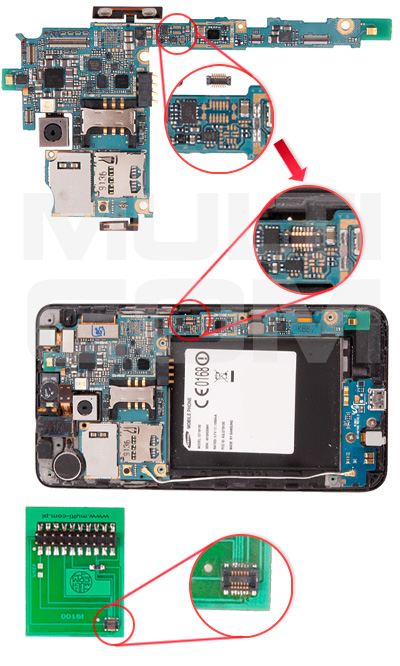

Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 12 pin molex into it. It's quite simple and for sure simpler that soldering wries - after this you can install JTAG adapter to repair as shown on video. You can buy additional molex connectors in future

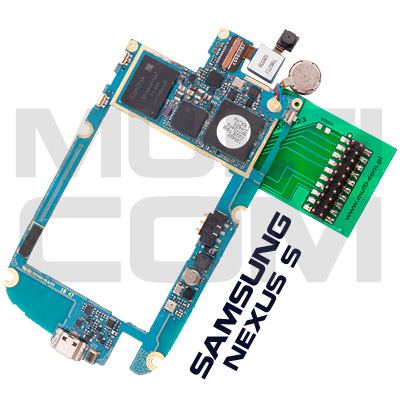

Mounted JIG - ready for rock....



LInk to YouTube video from full process -
LInk to product: JTAG Samsung Nexus S (i9020/i9023)
Link to 12 pin Molex to mount in phone: http://www.multi-com.pl/index.php/en...ategories.html

J

josher

Well-known Member
Joined
Sep 5, 2010
Posts
6,745
Likes
176

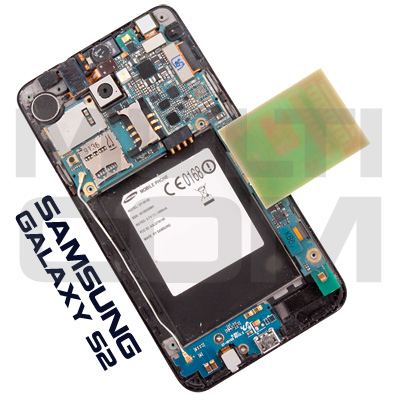

JTAG Samsung S9100 (Galaxy S2)




NOKOUT:
Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 12 pin molex into it. It's quite simple and for sure simpler that soldering wries - after this you can install JTAG adapter to repair as shown on video. You can buy additional molex connectors in future


Mounted JIG - ready for rock....



LInk to YouTube video from full process - Samsung i9100 Galaxy S2 - JTAG/RIFF connection unbrick (repair dead boot) - YouTube
LInk to product: JTAG Samsung S9100 (Galaxy S2)
Link to 12 pin Molex to mount in phone: JTAG Molex 12pin

J

josher

Well-known Member
Joined
Sep 5, 2010
Posts
6,745
Likes
176

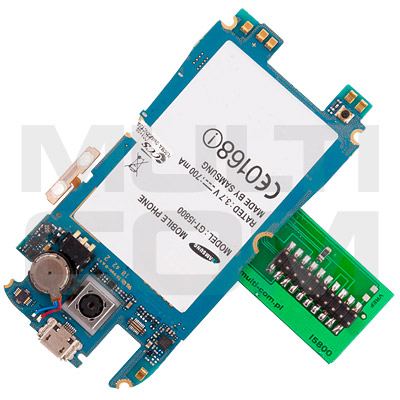

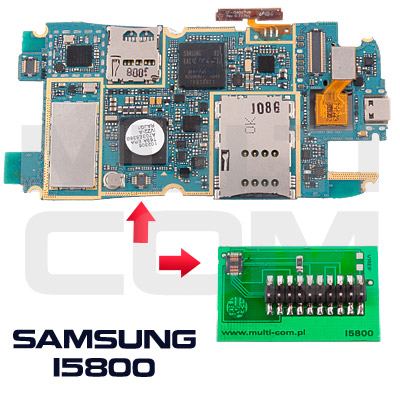

JTAG Samsung i5800 (Galaxy 3)



NOKOUT:
Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 10 pin molex into it. It's quite simple and for sure simpler that soldering wries - after this you can install JTAG adapter to repair as shown on video. You can buy additional molex connectors in future

Mounted JIG - ready for rock....



LInk to YouTube video from connection with Riff Box - uploading now.....
LInk to product: JTAG Samsung i5800 (Galaxy 3)
Link to 10 pin Molex to mount in phone: JTAG Molex 10pin

J

josher

Well-known Member
Joined
Sep 5, 2010
Posts
6,745
Likes
176

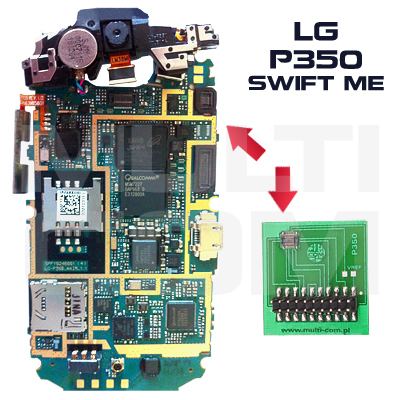

JTAG LG P350 (Swift ME)





NOKOUT:
Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 14 pin molex into it. It's quite simple and for sure simpler that soldering wries - after this you can install JTAG adapter to repair as shown on video. You can buy additional molex connectors in future



LInk to YouTube video from connection with Riff Box - LG P350 - JTAG/RIFF connection unbrick (repair dead boot) - YouTube
LInk to product: JTAG LG P350 (Swift ME)
Link to 14 pin Molex to mount in phone: JTAG Molex 14pin

J

josher

Well-known Member
Joined
Sep 5, 2010
Posts
6,745
Likes
176
JTAG Samsung i7500 REVO.1 (Galaxy)



NOKOUT:
Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 10 pin molex into it. It's quite simple and for sure simpler that soldering wries - after this you can install JTAG adapter to repair as shown on video. You can buy additional molex connectors in future

Mounted JIG - ready for rock....



LInk to YouTube video from unbrick with Riff Box - Samsung i7500 REVO.1 (Galaxy) - JTAG/RIFF connection unbrick (repair dead boot) - YouTube
LInk to product: JTAG Samsung i7500 REVO.1 (Galaxy)
Link to 10 pin Molex to mount in phone: JTAG Molex 10pin

J

josher

Well-known Member
Joined
Sep 5, 2010
Posts
6,745
Likes
176

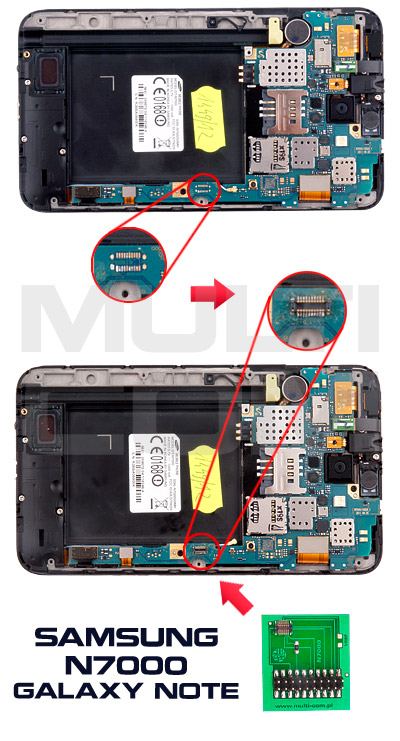

JTAG Samsung N7000 (Galaxy Note)



NOKOUT:
Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 20 pin molex into it. It's quite simple and for sure simpler that soldering wries - after this you can install JTAG adapter to repair as shown on video. You can buy additional molex connectors in future


LInk to YouTube video from unbrick with Riff Box - Samsung N7000 (Galaxy Note) - JTAG/RIFF connection unbrick (repair dead boot) - YouTube
LInk to product: JTAG Samsung N7000 (Galaxy Note)
Link to 20 pin Molex to mount in phone: JTAG Molex 20pin

J

josher

Well-known Member
Joined
Sep 5, 2010
Posts
6,745
Likes
176

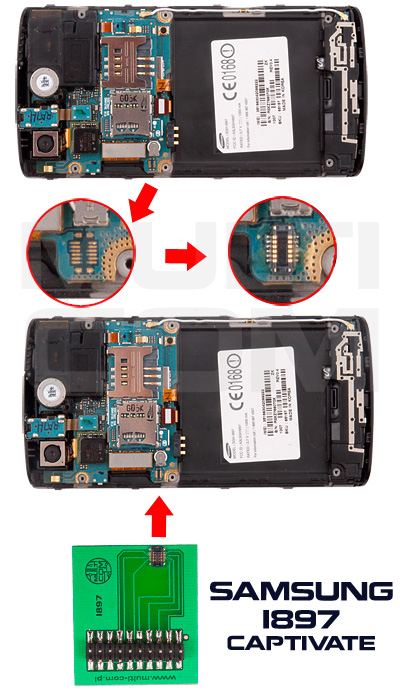

JTAG Samsung i897 (Galaxy S Captivate)



NOKOUT:
Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 12 pin molex into it. It's quite simple and for sure simpler that soldering wries - after this you can install JTAG adapter to repair as shown on video. You can buy additional molex connectors in future


LInk to YouTube video from unbrick with Riff Box - Samsung i897 (Galaxy S Captivate) - JTAG/RIFF connection unbrick (repair dead boot) - YouTube
LInk to product: JTAG Samsung i897 (Galaxy S Captivate)
Link to 20 pin Molex to mount in phone: JTAG Molex 12pin

J

josher

Well-known Member
Joined
Sep 5, 2010
Posts
6,745
Likes
176

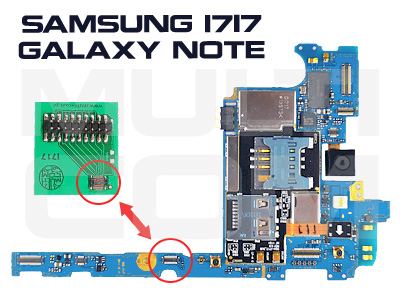

JTAG Samsung I717 (Galaxy Note 4G)






NOKOUT:
Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown

picture special 20 pin molex into it. It's quite simple and for sure simpler that soldering wries - after this you can install JTAG adapter to repair

as shown on video. You can buy additional molex connectors in future


LInk to product: JTAG Samsung I717 (Galaxy Note 4G)
Link to 20 pin Molex to mount in phone: JTAG Molex 20pin
