JIG JTAG for Riff available - HOT models Samsung Wave, Samsung Galaxy S

JTAG HTC NIkI100/HTC Touch Dual P5500



LInk to product: JTAG HTC ****

Ofcourse NEW ultra low pin used as above:


Hope you enjoy.... new models cooming soon

JTAG PCB for LG GT540 (aka Swift)



JIG uses special molex connector as shown below

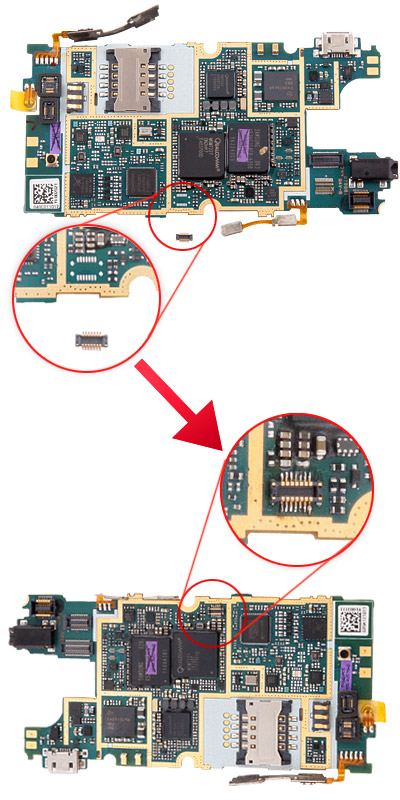

Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 14 pin moelx into it. It's quite simple and for sure simplier that soldering wres - after this you can install JTAG adapter to reapri as shown on video. You can buy additional molex connectors in futrue also





Link to product: JTAG LG GT540 (Swift)
Link to Youtube from repair process using Riff - LG GT540 (SWIFT)- JTAG/RIFF connection unbrick (repair dead boot) - YouTube

JTAG JIG PCB for Samsung S8000 (Jet)

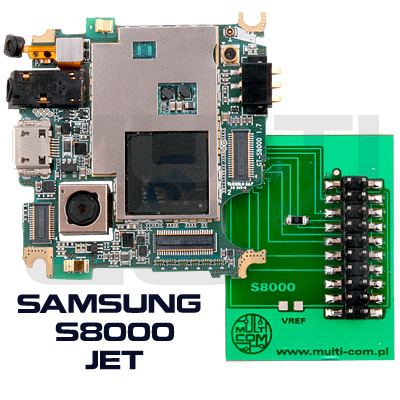

Photo of adapter:


Adapter need to connect to molex connector on phone board - in 90% of cases PCB don't have this connector installed so you need to solder as on shown picture special 14 pin moelx into it. It's quite simple and for sure simplier that soldering wres - after this you can install JTAG adapter to reapri as shown on video. You can buy additional molex connectors in futrue also

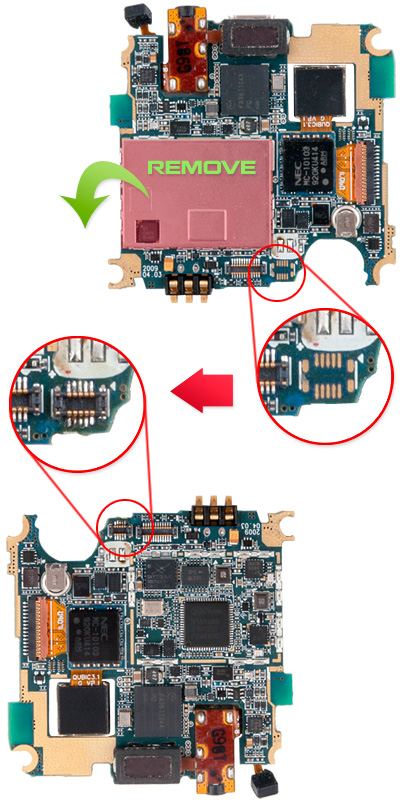

Preparing phone:


Photo of mounted adapter:



Link to product: JTAG Samsung S8000 (Jet)
Link to video on Youtueb from Riff connection: Samsung S8000 Jet - JTAG/RIFF connection unbrick (repair dead boot) - YouTube
