common problem difficult to solve try to make it easy

[JannatLui]

nokia 3500 that bluetooth dose not turn on, flashed it but nothing happened,
then do this job

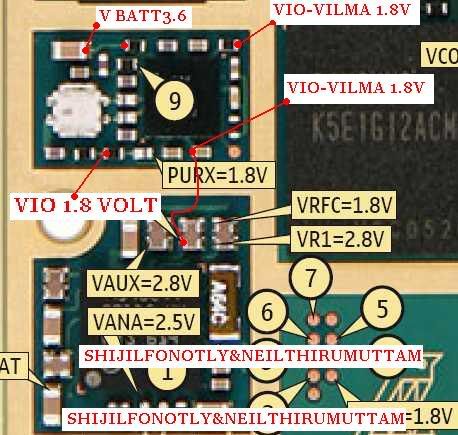

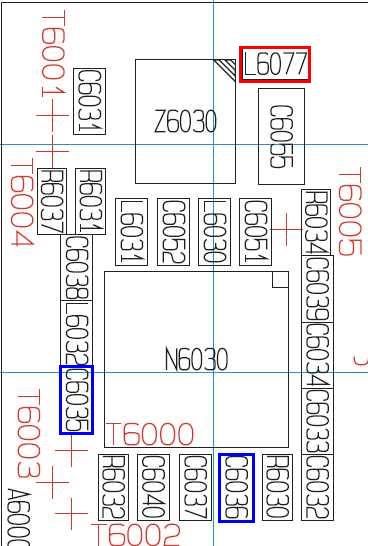

CHECK L6077-VBATT 3.6VOLT
R6030,C6035-VIO 1.8VOLT



[JannatLui]

nokia n73 no network first try this



[JannatLui]

6680 camera not working.feauter not supported.???

try this first



[JannatLui]

Nokia N73 Blue Display. its incoming and out going calls r ok.

just shows blue display.

have changed its LCD but still giving problem.

try this
​



[JannatLui]

nokia 6280 and 6300 insert sim problem

6300@REMOVE C2700 VSIM RELATED CAPACITOR
BECOZ THIS CAPACITOR LEAKAGE TIME VSIM VOLT DROPED
THIS TIME PHONE SIM NOT TAKEN
SAME METHODE TRY 6280
6280

6300



[JannatLui]



[JannatLui]

1)Booting phone...
APE Boot Data:
Asic ID: 17100701
Asic Mode ID: 00
Asic Public ID: 0263DAC3902CB3B1AB83BEF8E79FA987E4E68FEC
HASH: 2C05369F57CC3C4CF9E783E83D9B512B00000000
ROM ID: AB5E4ADB27A06946

CMT Boot Data:
Asic ID: 000000010000022600010006000C192101002200
Asic Mode ID: 00
Asic EM ID: 00000352
Asic Public ID: 12200202F57251519FE05B4ECE928FA7AB0B5330
HASH: E9EFF4BFAA5393217CA6B17755FC3E1400000000
ROM ID: F28A211FCEA7B19D
CMT Boot File: C:\Program Files\ODEON\JAF\Flash\rap3gv2_2nd.fg
Loader version: 01.15.00 -> Revision: 0000
Patching CMT boot step2...
CMT Boot Ready
CMT Flash ID: 225000EC <=> SAMSUNG (SEC) -> K8S6415ETB
CMT Flash Data: 00000000000000000000000000000000
CMT Loader: C:\Program Files\ODEON\JAF\Flash\RAP3Gv3_algo.fg
Loader version: 01.21.01 -> Revision: 0000
CMT Loader Ready
APE Boot: C:\Program Files\ODEON\JAF\Flash\helen3_2nd.fg
Loader version: 01.23.00 -> Revision: 0000
Patching APE boot step2...
APE Boot Ready
Error in cmd read id...
Error in ape get id...

Q)why show this error with 5 pin cable
Answer) VBUS POWER DET OR RX2 CONNECTION MISSING TIME SHOW THIS ERROR
Solution)change cable

Q)7 pin cable show this same error?
Aswer)POWER DET OR RX2 not proper
solution)clean flash interface,check TAHVO or RETU
MAINLY THIS CAUSE TAHVO problem

2)Booting phone...
APE Boot Data:
Asic ID: 17100701
Asic Mode ID: 00
Asic Public ID: 8D8000D96997B019C64F82E50D6E7E56F062074A
HASH: 2C05369F57CC3C4CF9E783E83D9B512B00000000
ROM ID: AB5E4ADB27A06946

CMT Boot Data:
Asic ID: 000000010000022600010006000C192101002200
Asic Mode ID: 00
Asic EM ID: 00000353
Asic Public ID: 0FD0000651755D51E258231DB9B10843FA32F8C0
HASH: E9EFF4BFAA5393217CA6B17755FC3E1400000000
ROM ID: F28A211FCEA7B19D
CMT Boot File: C:\Program Files\ODEON\JAF\Flash\rap3gv2_2nd.fg
Loader version: 01.15.00 -> Revision: 0000
Patching CMT boot step2...
CMT Boot Ready
CMT Flash ID: 00000000 <=> Flash -> not detected
CMT Flash Data: NOT AVAILABLE
CMT Loader: C:\Program Files\ODEON\JAF\Flash\RAP3Gv3_algo.fg
Loader version: 01.21.01 -> Revision: 0000
Error loading cmt loader...

THIS CAUSE CMT FLASH IC PROBLEM
SOLUTION REFLOW OR REBALL CMT FLASH IC

3)Booting phone...
APE Boot Data:
Asic ID: 17100701
Asic Mode ID: 00
Asic Public ID: C57A6C30A60BFE52D39FC1751D66A629FB40EB4E
HASH: 2C05369F57CC3C4CF9E783E83D9B512B00000000
ROM ID: AB5E4ADB27A06946
CMT Boot Data:
Asic ID: 000000010000022600010006000C192101002200
Asic Mode ID: 00
Asic EM ID: 00000353
Asic Public ID: 1E80000999865A516630285C29EAFDD6F54AA796
HASH: E9EFF4BFAA5393217CA6B17755FC3E1400000000
ROM ID: F28A211FCEA7B19D
CMT Boot File: C:\Program Files\ODEON\JAF\Flash\rap3gv2_2nd.fg
Loader version: 01.15.00 -> Revision: 0000
Patching CMT boot step2...
CMT Boot Ready
CMT Flash ID: 225000EC <=> SAMSUNG (SEC) -> K8S6415ETB
CMT Flash Data: 00000000000000000000000000000000
CMT Loader: C:\Program Files\ODEON\JAF\Flash\RAP3Gv3_algo.fg
Loader version: 01.21.01 -> Revision: 0000
error loading cmt loader......

THIS CAUSE FIRST CHECK VDRAM VOLT1.8 THIS VOLT GRENERATED BY RETU
RETU DAMAGED TIME SHOW THIS ERROR
THEN FIRST CHECK OR REBALL RETU
SECOND STEP CHECK RAP OR RAM

4)FILES SET FOR FLASHING:
MCU Flash file: C:\Program Files\Nokia\Phoenix\Products\RM-84\RM84_50737301.C0
PPM Flash file: C:\Program Files\Nokia\Phoenix\Products\RM-84\RM84_50737301.V11
CNT Flash file: NONE
APE Variant file: ?
Manual mode selected, version can't be checked!
Booting phone...
CMT Boot Data:
Asic ID: 000000010000022600010006000C192101002200
Asic Mode ID: 00
Asic EM ID: 00000352
Asic Public ID: 0C800103D8654E5160FC20C285A16EB1C330C054
HASH: E9EFF4BFAA5393217CA6B17755FC3E1400000000
ROM ID: F28A211FCEA7B19D
CMT Boot File: C:\Program Files\ODEON\JAF\Flash\rap3gv2_2nd.fg
Loader version: 01.15.00 -> Revision: 0000
Patching CMT boot step2...
CMT Boot Ready
CMT Flash ID: 225000EC <=> SAMSUNG (SEC) -> K8S6415ETB
CMT Flash Data: 00000000000000000000000000000000
CMT Loader: C:\Program Files\ODEON\JAF\Flash\RAP3Gv3_algo.fg
Loader version: 01.21.01 -> Revision: 0000
CMT Loader Ready
Operation took 0 minutes 6 seconds...
Sending CNF Data...
APE blocks present in flash file but no APE mcu detected in phone. Aborting!

THIS CAUSE APE FLASH(COMBO MEMORY) NOT DETECTED
FIRST CHECK APE DRIVER
SECOND CHECK OR REFLOW COMBO MEMORY
THIRD CHECK OMAP
RETU OR TAHVO CHANCE ONLY 10%

THIS SAME METHODE TO REPAIR 6630,6680,6681,N70,N72,N71,N91,N95 Etc.......................................



[JannatLui]



[JannatLui]

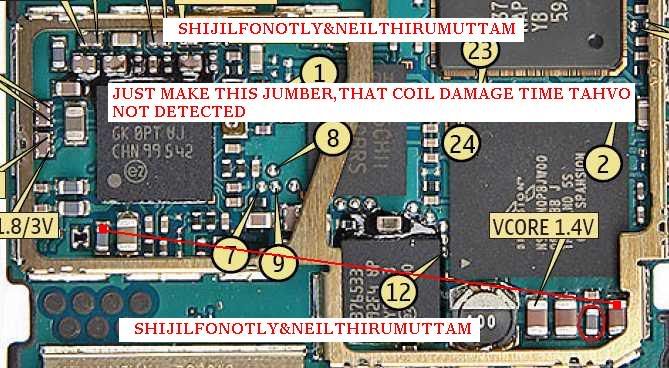

nokia 6233 CMT FLASH NOT DETECTED
FIRST TRY THIS BECOZ TAHVO RUNING VOLTAGE BREAKED THAT COIL DAMAGING......



[JannatLui]

nokia n73 blue tooth not work



[JannatLui]

nokia 6300 lcd and keypad light soloution

check this



[JannatLui]

nokia 1110,1600 power ways



[JannatLui]

nokia 6680 insert sim ways



[JannatLui]

old nokia dct-3 3310 insert sim soloution



[JannatLui]

nokia 7610 its show charging but battery not charged and other full battery is giving full backup.here is soloution

first CHANGE BSI LINE RESISTER OR REMOVE THAT CAPACITOR
SAME PROBLEM FACED 100%UEM PROBLEM
