HWK CHip error 45 FIXED by AVATOR BOX


Here is the pin out guide. .



- Pinahinang ko sa kanya.




- Then after that sinaksak ko na sya sa avator.

- SET PINOUTS. From Avator SW, click PINOUT.



*Here is the step procedure on hwk repair ver 2.0.0
Quote:
- run "Avator!! HWK Repair.exe"

- Click on setting and do select setting as shown
"Avator!! HWK Repair ver 2.0.0 CONFIG" then press ok


- Select MSP430F11X1

- Click on erase

- Then open the file "AVATOR_REPAIR_HWK_3.08 HWL Flash File.bin" and click on prog

SEE SCREENSHOTS:






New Vision

Well-known Member
Joined
Nov 26, 2011
Posts
615
Likes
6
answer: HWK CHip error 45 FIXED by AVATOR BOX[step by step procedure]

- After that assemble.. Put HWK cip on the HWK Box. Connect usb and install drivers.[/B]

- Tried to run DCTxBB5 but error is like this:


- So i decied to UPDATE

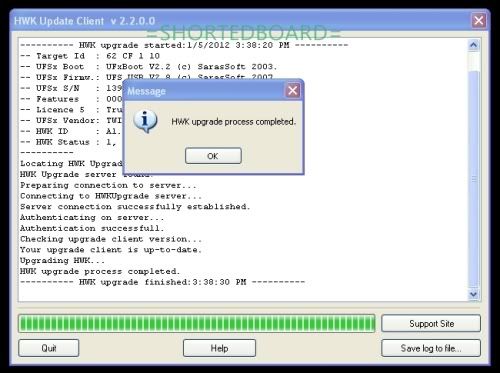

SUCCESS UPDATE:



- Tried to run the DCTxBB5 again if success, but it goes like this:



I know it needs a fresh install on other PC


- I use other PC and intall the Support suite and the main suite...

- Finally, i tried to run DCTxBB5, and here it goes, SUCCESS!!!





All done


sonugola2

Junior Member
Joined
Mar 7, 2011
Posts
6
Likes
0
answer: HWK CHip error 45 FIXED by AVATOR BOX[step by step procedure]

hi help hwk flasher and file
i need ..................?
