HWK CHip error 45 FIXED by AVATOR BOX

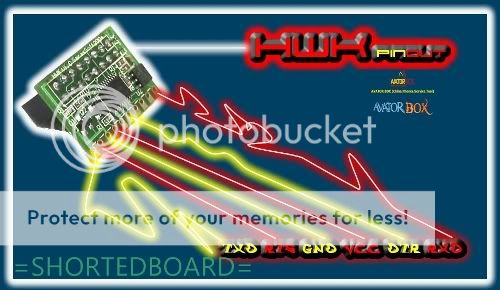

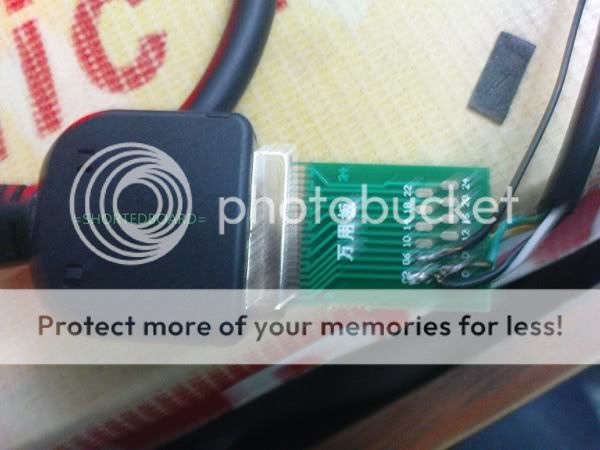

Here is the pin out guide na sinundan namin..



- Pinahinang ko sa kanya.




- Then after that sinaksak ko na sya sa avator.

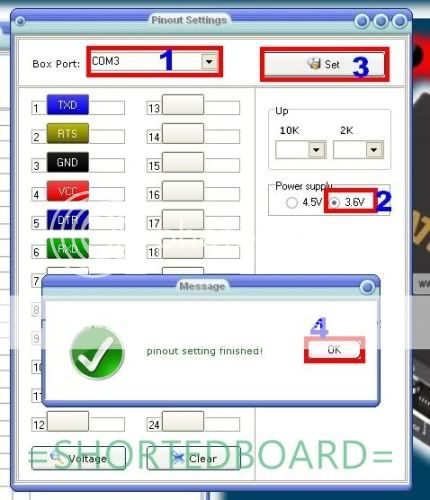

- SET PINOUTS. From Avator SW, click PINOUT.


*At eto step by step procedure sa hwk repair ver 2.0.0

- run *quot;Avator!! HWK Repair.exe*quot;

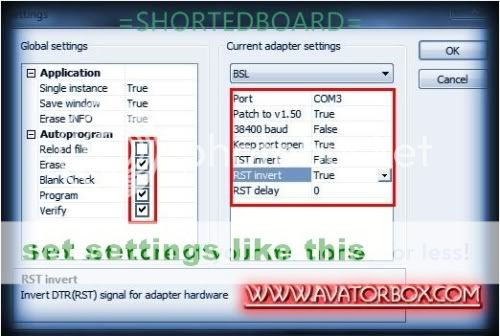

- Click on setting and do select setting as shown
*quot;Avator!! HWK Repair ver 2.0.0 CONFIG*quot; then press ok


- Select MSP430F11X1

- Click on erase

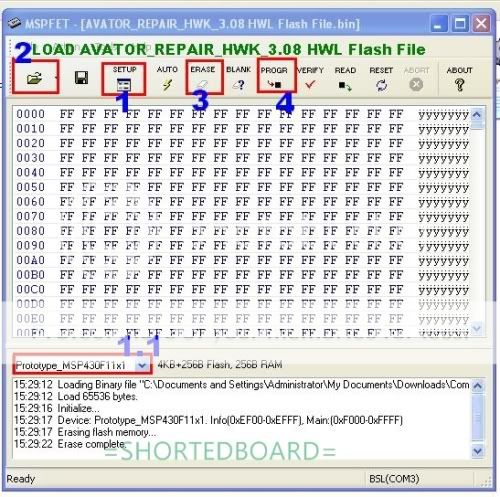

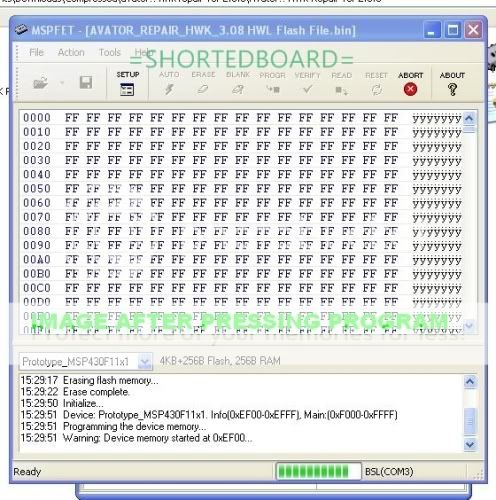

- Then open the file *quot;AVATOR_REPAIR_HWK_3.08 HWL Flash File.bin*quot; and click on prog

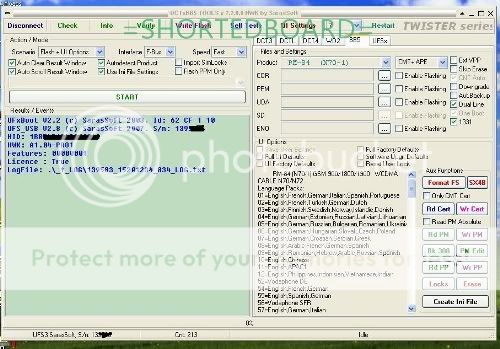

SEE SCREENSHOTS:






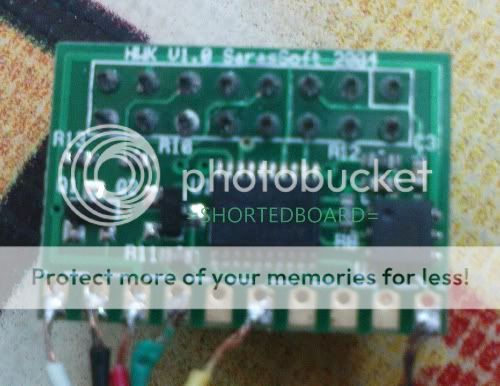

- After that assemble.. Put HWK cip on the HWK Box. Connect usb and install drivers.

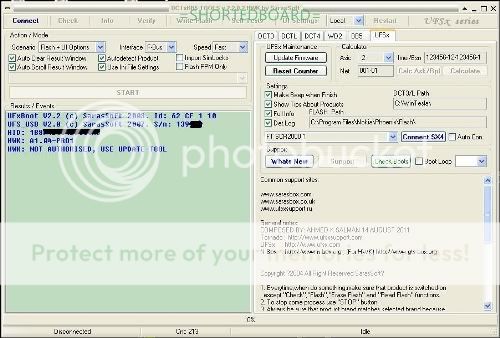

- Tried to run DCTxBB5 but error is like this:


- So i decied to UPDATE

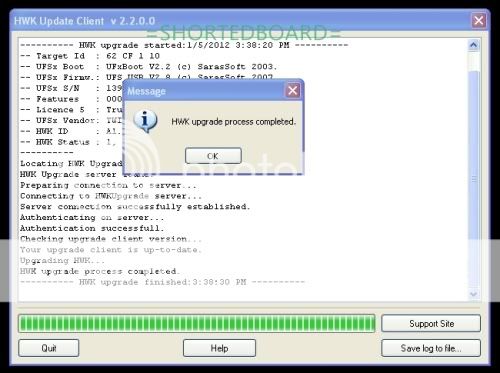

SUCCESS UPDATE:



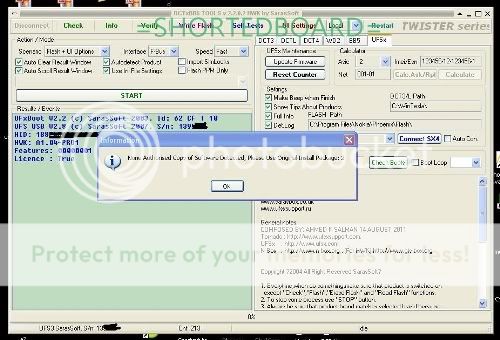

- Tried to run the DCTxBB5 again if success, but it goes like this:



I use other PC and intall the Support suite and the main suite

- Finally, i tried to run DCTxBB5, and here it goes, SUCCESS!!!
