All china solutions with diagrams in on thread

[JannatLui]

Repair tip for Charger show- Cable Disconnect



[JannatLui]

f88headset

sigmatel f88 headset mode new sol

this ic contains the speaker tracks.i think that changing of 5this ic will remove headset mode.

NOTE:Try at ur own risk i never tried this because i don't have the same ic.i seen many members posting again -2 for this problem.



[JannatLui]

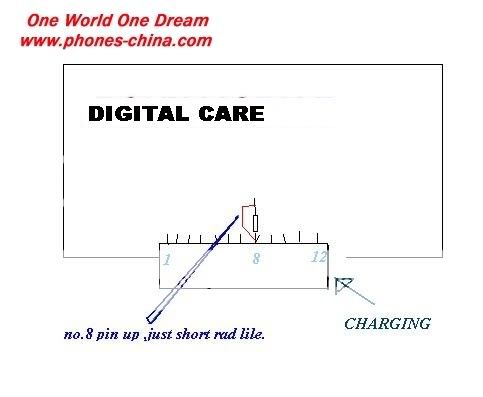

chines mobile a950 bluetooth auto charging slution



[JannatLui]

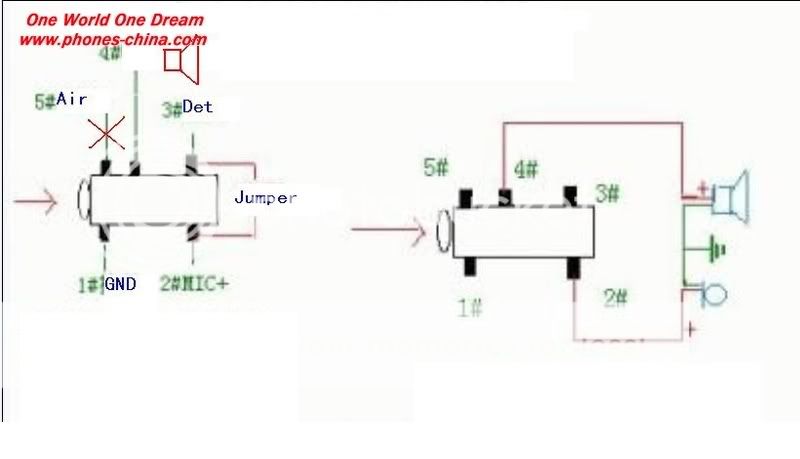

sigmatel s2 showing headset mode slution



[JannatLui]

NEW SOLUTION zt588,cgc,mpeg4 handsfree



[JannatLui]

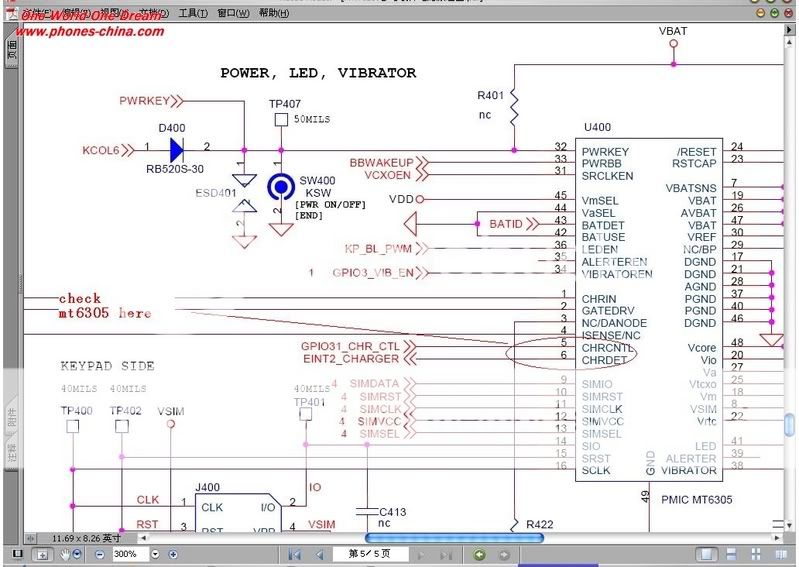

MTK 6305 vbat ways



[JannatLui]

MTK Boot request wyas



[JannatLui]

sigmatel_s3



[JannatLui]

trick for how to find out RX TX in chaina hand sets



[JannatLui]

Spreadum sim ways



[JannatLui]

SIGMATEL v668 HEADSET PROBLEM solution



[JannatLui]

mtk_key_pad

KEYPAD NOT WORKING SOL. NEW MTK

IF ANY BODY HAVING KEYPAD NOT WORKING AFTER REMOVING TOUCH PAD,REMOVING SIDE BUTTONS SHORTING.
THEN ALWAYS TRY THIS SOL.
U JUST HAVE TO SEE THE TRACKS OF SIDE BUTTONS WHERE THEY R GOING TO BLACK RESISTANCE
JUST REMOVE THE RESISTANCE.



[JannatLui]

5310xpress china insert sim solution



[JannatLui]

NAKTEL VLUETOOTH,SIGMATEL WHITE SCREEN



[JannatLui]

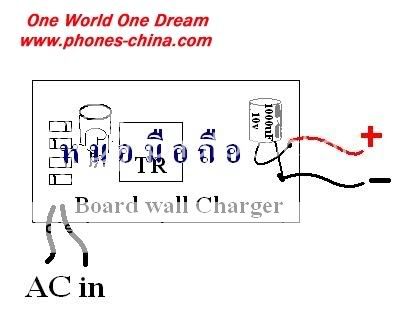

MAKING OF CHARGER or bad contact FOR CHINESE PHONES
