common problem difficult to solve try to make it easy

[JannatLui]

3110c and 6300 both are net work problems some times signal drop and some ttimes out of coverage and some times call ok soloution

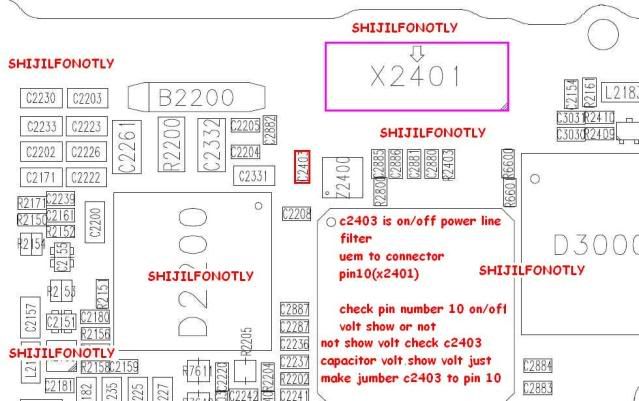

first try to change that capacitor red marked

problem not solved try this



[JannatLui]

NOKIA DCT4 CONTACT SERVICE HARDWARE OR SOFTWARE EASY TO FIND WITH UFS+HWK
1)CONNECT UFS+HWK
2)SELECT DCT4 TAB
3)USE INFO BUTTON(SOME TIMES PHONE NOT ENTER LOCAL MODE JUST LONG PRESS POWER BUTTON
4)CHECK INFO DETAILS

5)SL DATA CORRUPTED(MEANS SIMLOCK ENABLED)
6)JUST UNLOCK PHONE

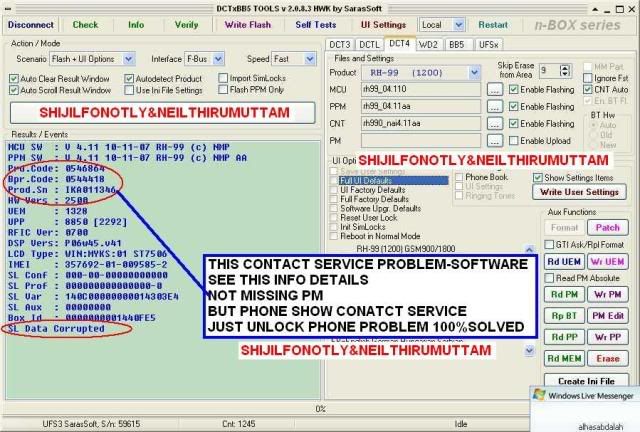

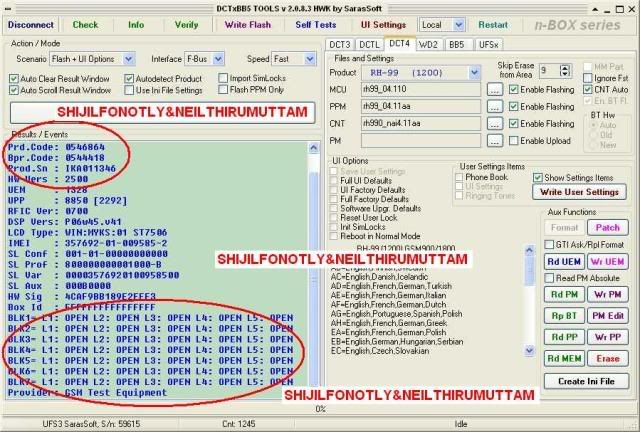

SEE SECOND PICTURE INFO DETAILS 100%DONE.BUT PHONE STILL SHOW CONTACT SERVICE
7)CONNECT SET
8)RUN SELF TEST

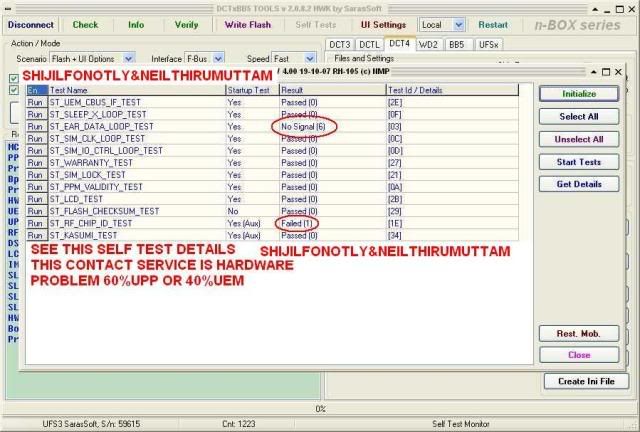

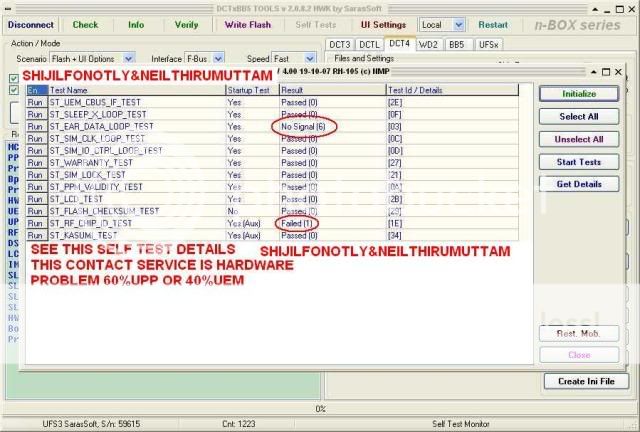

SEE THIS SELF TEST DEIALS
EAR _CLK_LOOP TEST----------NO SIGNAL
RF CHIP ID TEST---------------FAILED
THIS CONTCAT SERVICE HARDWARE PROBLEM
HARDWARE CHANCE
60%UPP
30M
10%OTHERS LIKE BSI ETC...........

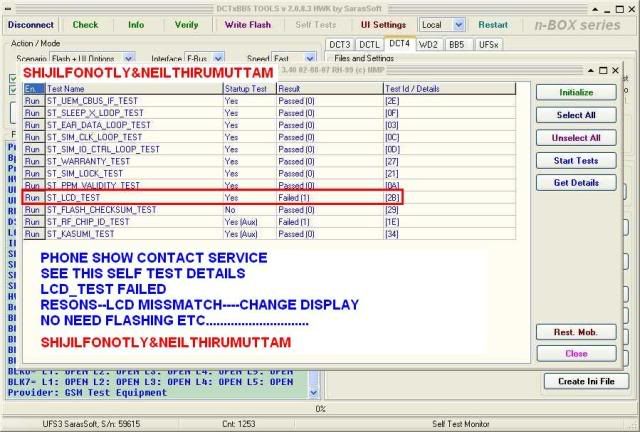

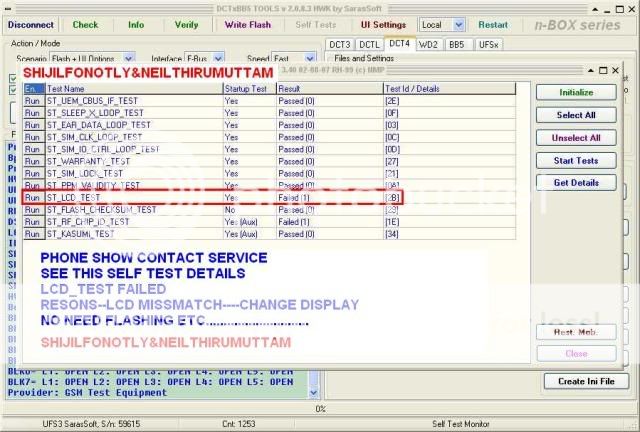

SEE ANOTHER SELF TEST DETAILS
LCD TEST-----------FAILED
RESONS LCD MISSMATCHED
JUST CHANGE DISPLAY NO NEED TO FLASH&UNLOCK ETC.............



[JannatLui]

CONTCAT SERVICE SOLUTION UPDATED
1)CONNECT UFS+HWK
2)USE INFO BUTTON

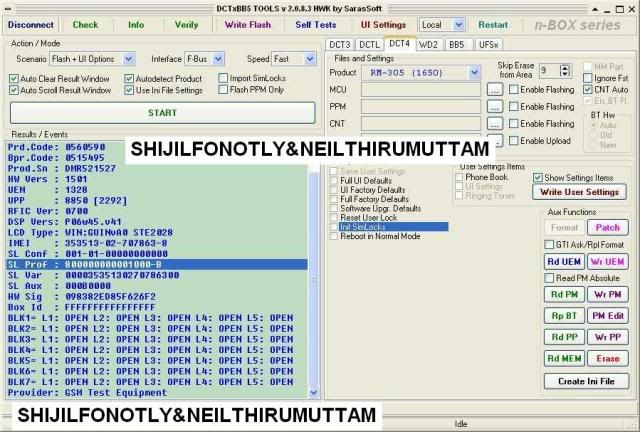

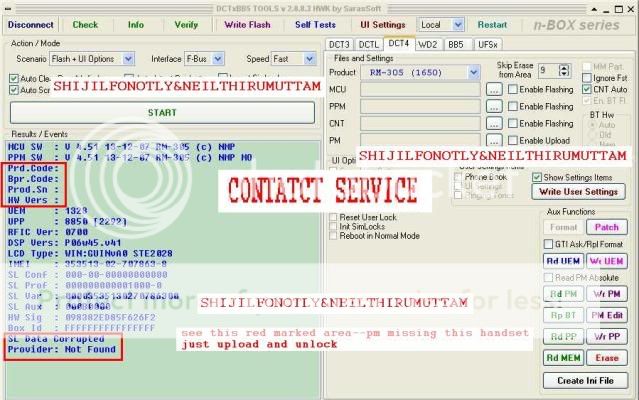

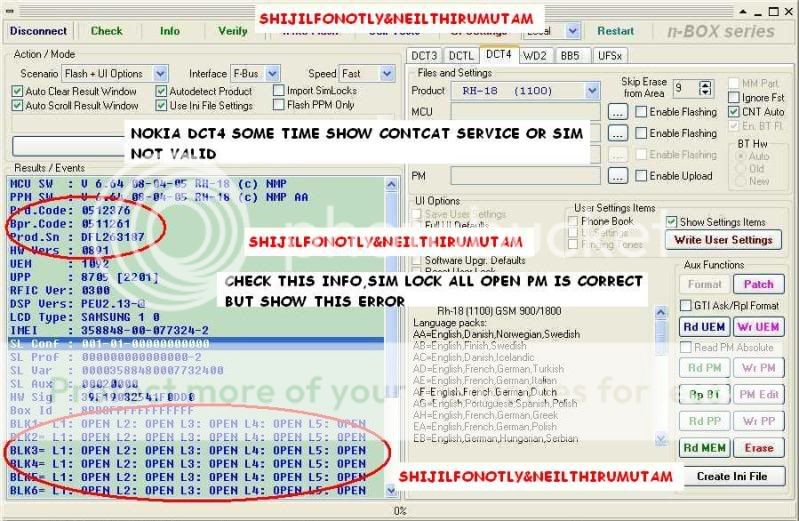

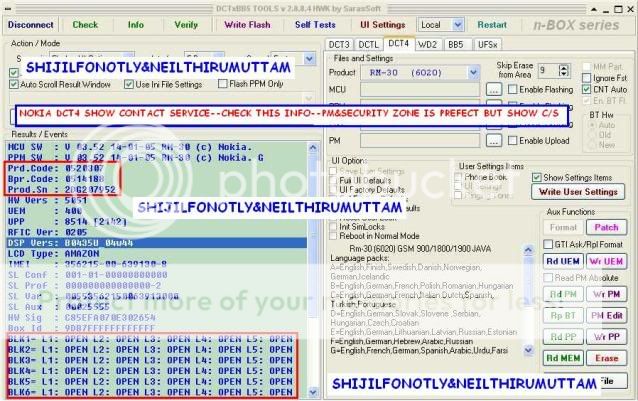

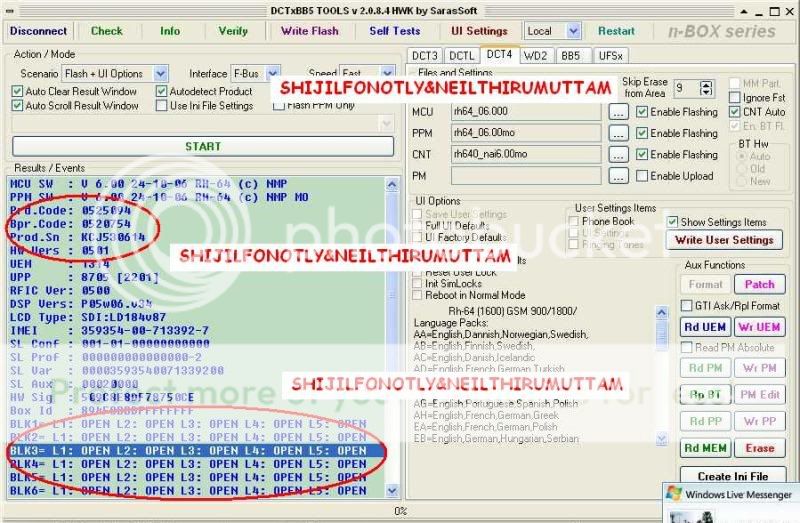

SEE THIS SCREEN SHOT

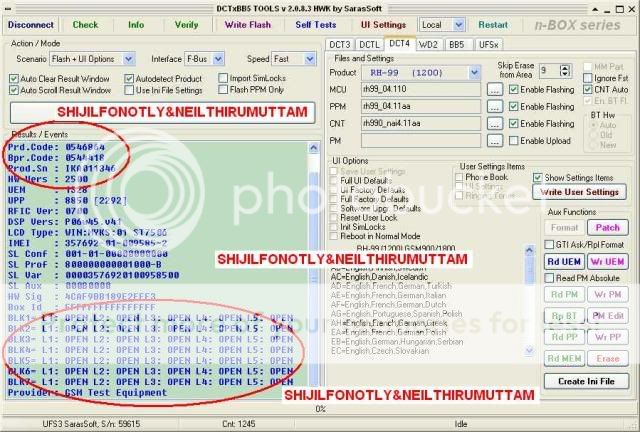

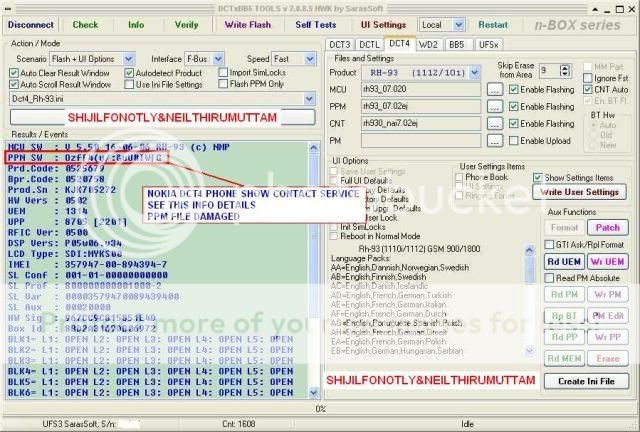

SEE THIS RED MARKED AREA.CONTCAT SERVICE RESONS LOST PM FILE

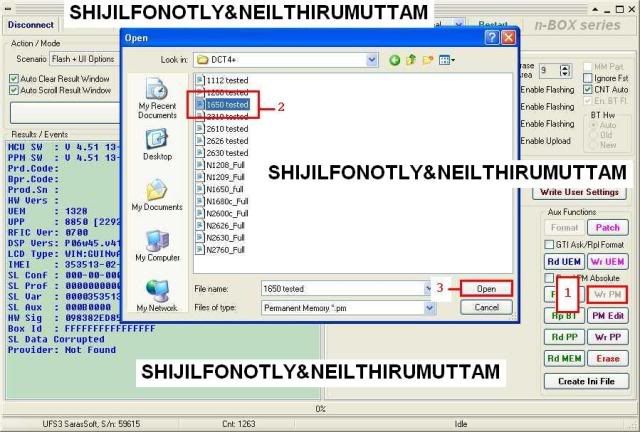

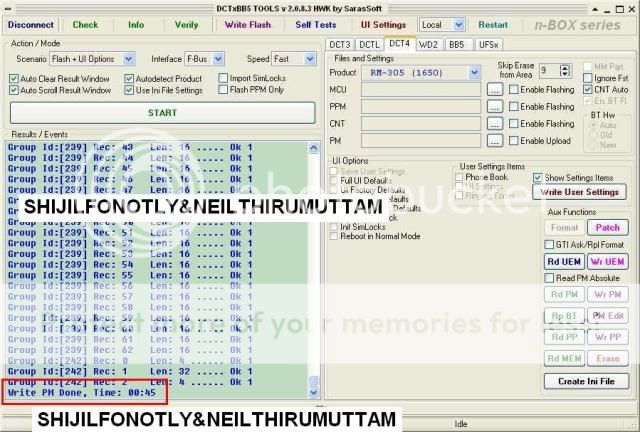

1)UPLOAD PM

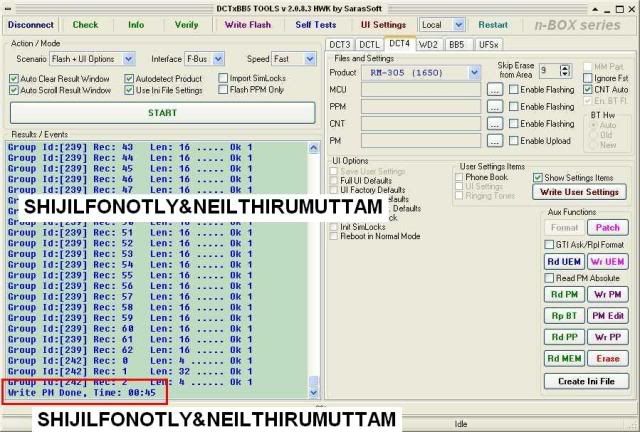

UPLOAD DONE!!!

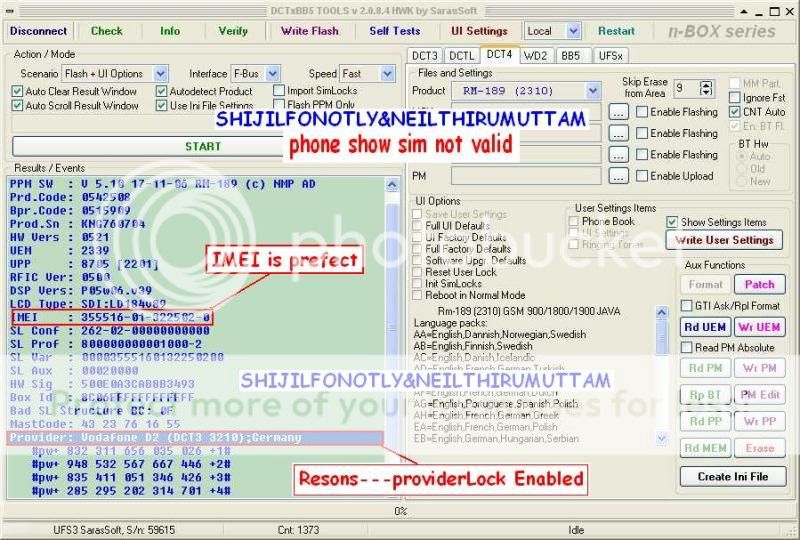

SL DATA CORRUPTED
PROVIDER NOT FOUND
MEANS SIM LOCK ENABLED

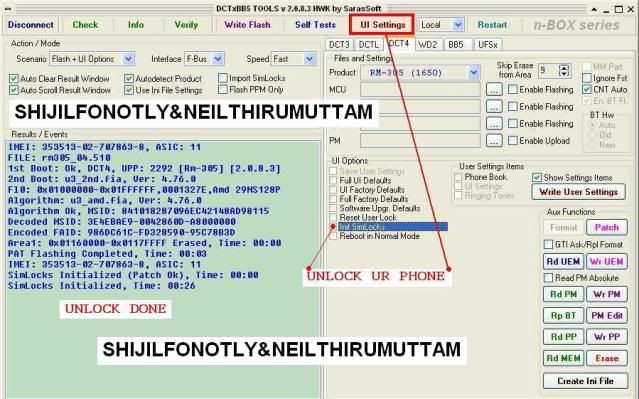

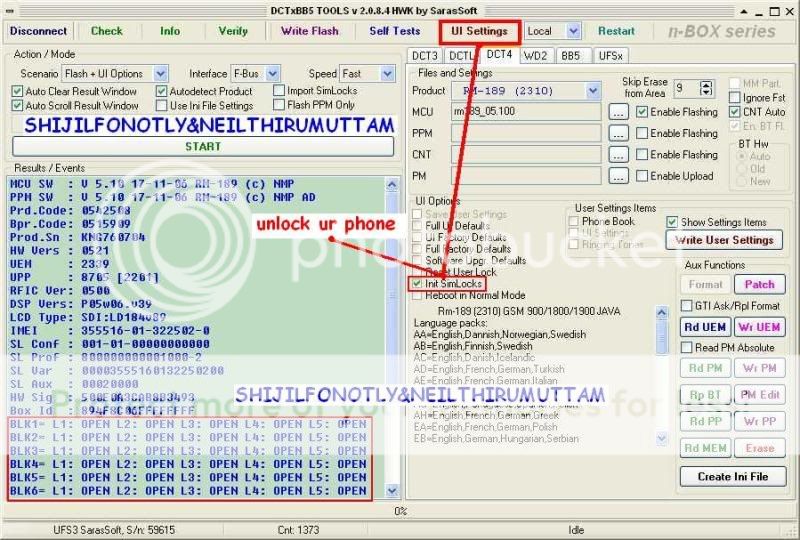

UNLOCK UR PHONE

UNLOCK DONE CONTACT SERVICE PROBLEM SOLVED



[JannatLui]



[JannatLui]

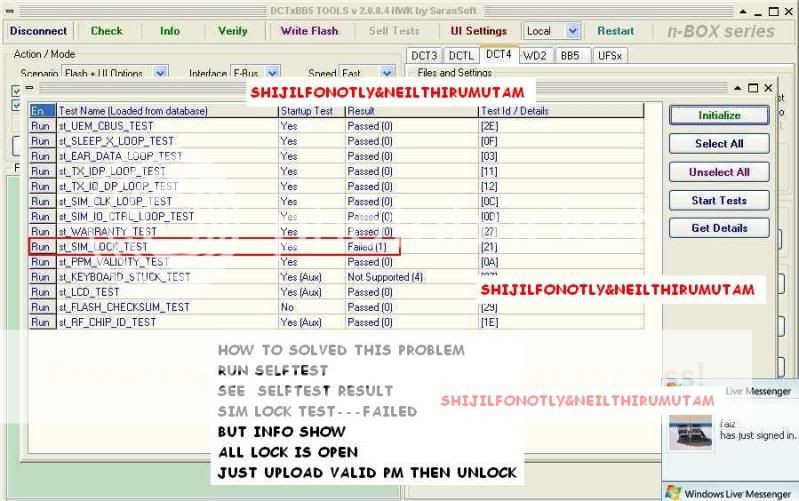

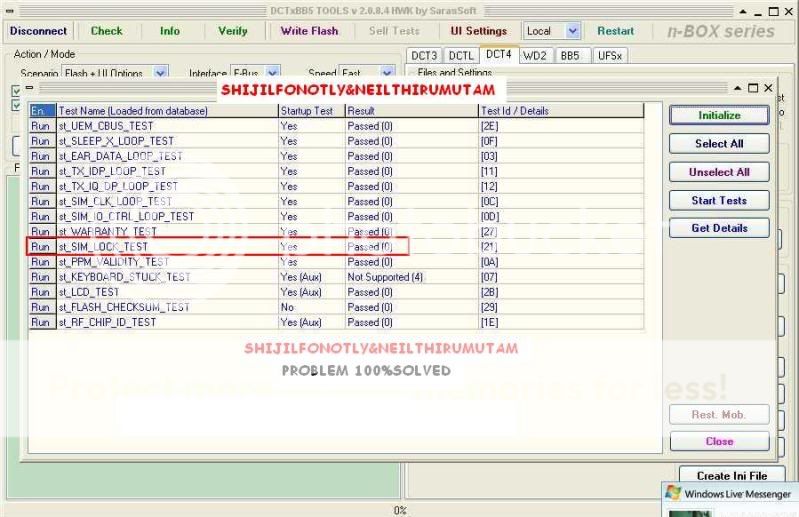

simlock test failed
unlock ur problem 100%solved ur problem



[JannatLui]

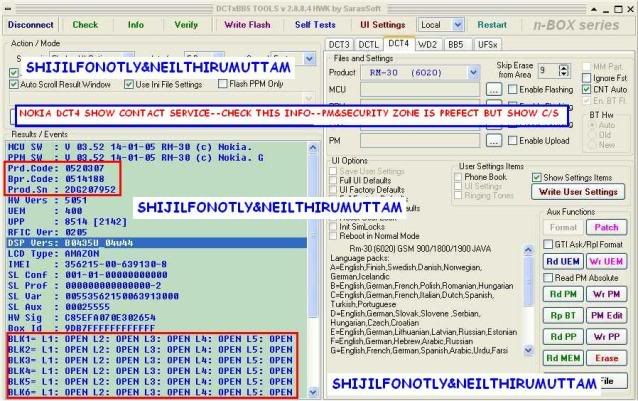

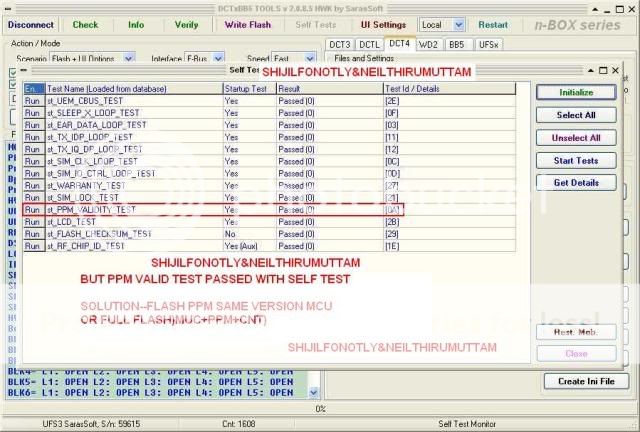

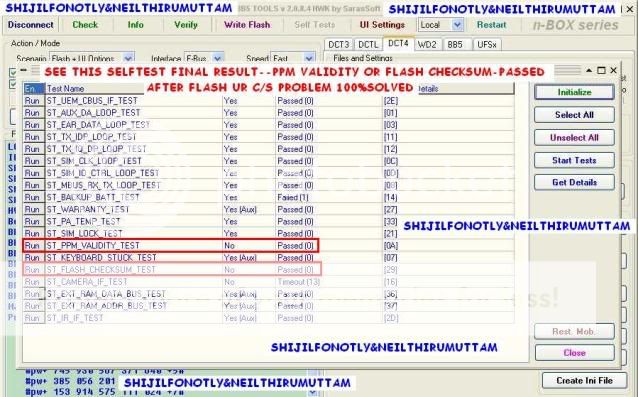

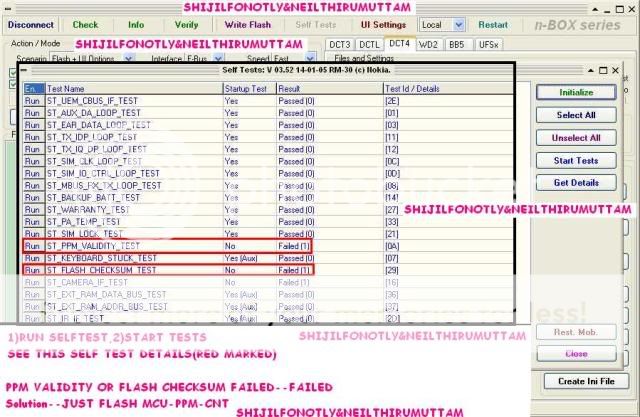

NOKIA DCT4 CONTACT SERVICE CHECKING METHODE UPDATED



[JannatLui]

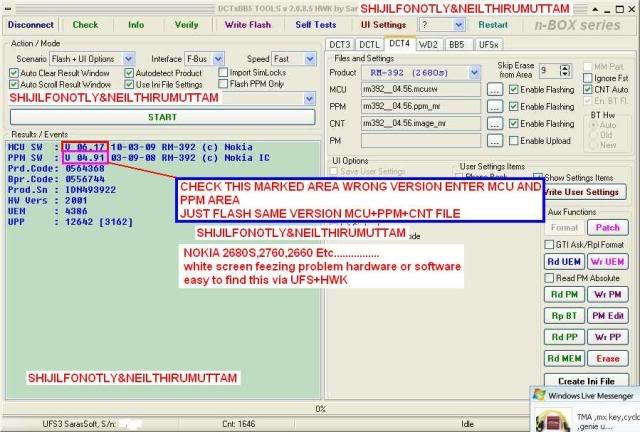

....:::: DCT4 CONTACT SERVICE SOLUTION UPDATED:::::.....



[JannatLui]



[JannatLui]



[JannatLui]



[JannatLui]



[JannatLui]



[JannatLui]

MCU SW : V 5.80 14-11-08 RM-305 (c) NMP
PPM SW : V 5.80 14-11-08 RM-305 (c) NMP AE
Prd.Code: 0547535
Bpr.Code: 0515495
Prod.Sn : DMR262460
HW Vers : 1501
UEM : 1328
UPP : 8850 [2292]
RFIC Ver: 0700
DSP Vers: ICPR62_08w31_UPP
LCD Type: UNKWN: IDs: 00:ff:00
IMEI : 356859-
SL Conf : 000-00-00000000000
SL Prof : 000000000001000-0
SL Var : 00003568590260216300
SL Aux : 000B0000
HW Sig : 86A3608B879651FD
Box Id : FFFFFFFFFFFFFFFF
SL Data Corrupted
Provider: Not Found

for solve contact service need to change lcd and unlock the phone



[JannatLui]

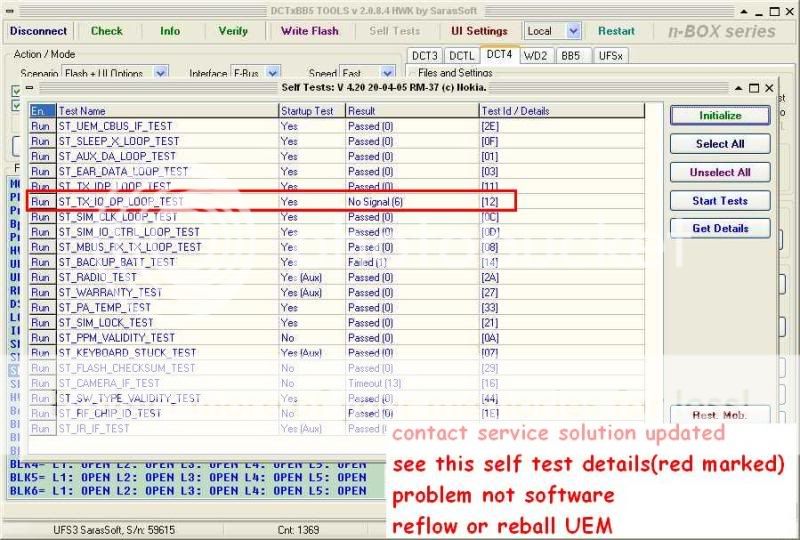

Nokia 1208 contact service problem here i post selftest screen shot

this is not software problems 100%hardware problem
reflow or reball UEM



[JannatLui]

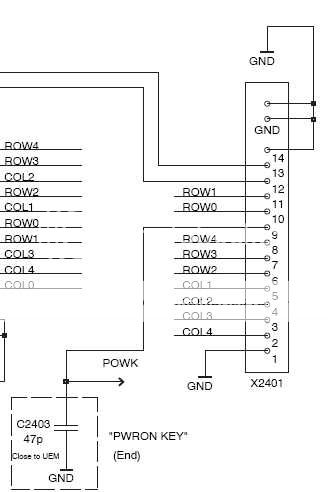

nokia 2630 its normal water damage area near uem and keypad connector check set is not on but when plug the charging pin then show charging but not power on soloution is here
