samsung champ c3303 auto and charge pc connectivity shown on LCD

A

amit123

Newbie
Joined
Apr 23, 2011
Posts
4
Likes
0
I have got one SAMSUNG C3303 showing Charge pc connectivity as soon as I switch on the mobile. I tried the following things :

1. Cleaned the Charging Jack very well with good quality thinner.

2. Resoldered the 7 pins connected with the PCB.

3. Changed the Charging Socket perfectly.

Now it's not taking any charge at all and also no sign of pc connectivity on the LCD.

Please give me the solution.

J

JannatLui

Well-known Member
Joined
Sep 1, 2010
Posts
2,836
Likes
14
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

amit123 said:
I have got one SAMSUNG C3303 showing Charge pc connectivity as soon as I switch on the mobile. I tried the following things :

1. Cleaned the Charging Jack very well with good quality thinner.

2. Resoldered the 7 pins connected with the PCB.

3. Changed the Charging Socket perfectly.

Now it's not taking any charge at all and also no sign of pc connectivity on the LCD.

Please give me the solution.
Click to expand...
try


A

amit123

Newbie
Joined
Apr 23, 2011
Posts
4
Likes
0
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

Pls. upload the Charging Ways of Samsung C3303 Mobile Phone. I will be grateful to all of you.

S

sharvan

Newbie
Joined
May 6, 2012
Posts
1
Likes
0
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

kindly change charging diod and your problem will be solve 101 % tested

D

dilip ekma

Junior Member
Joined
Mar 11, 2011
Posts
5
Likes
0
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

i all try but not solve ........ plz solution .....
sharvan bro ...where charging diod in pcb plz send photo......

N

NANAIU

Well-known Member
Joined
Oct 15, 2010
Posts
2,734
Likes
63
Location
BD
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

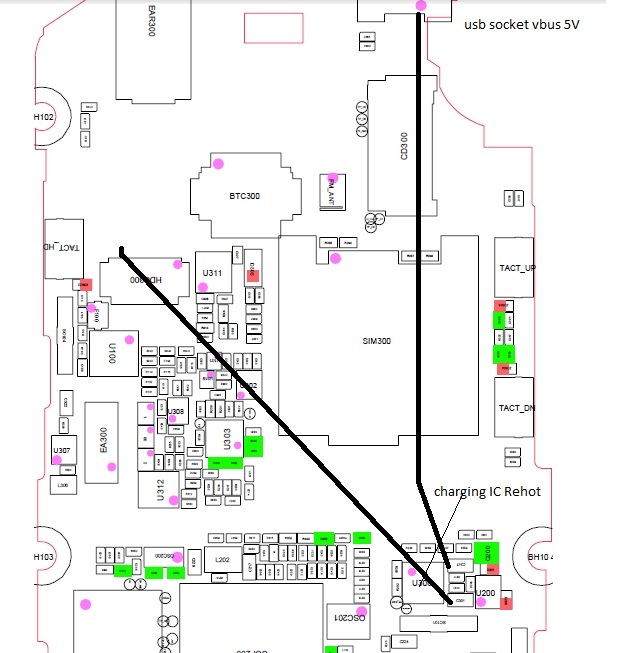

samsung c3303k auto charge solutions




Just try & post result..........
​

M

mmcgsm

Newbie
Joined
Jul 10, 2012
Posts
1
Likes
0
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

dilip ekma said:
i all try but not solve ........ plz solution .....
sharvan bro ...where charging diod in pcb plz send photo......
Click to expand...
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

V

vickkyjaat

Junior Member
Joined
Jan 16, 2012
Posts
33
Likes
0
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

which pin is connected 7 pin jack boss last is +positive supply & 2ND JUPPER WERE PLACE..PLS TELL CLEAR EXPLAN THNKS

P

panchami

Newbie
Joined
Dec 10, 2011
Posts
1
Likes
0
answer: samsung champ c3303 auto and charge pc conectivity shown on LCD

after these all job plz try to use with original charger faced the same and solved with replacing with original charger plz post result.............good luck

N

nunu

Junior Member
Joined
Dec 29, 2012
Posts
17
Likes
0
check charging connector 3rd track problem solved......... i try this 100000%

G

gsmhase

Junior Member
Joined
May 2, 2013
Posts
27
Likes
1
Charging Jack remove 100% but not charging your mobile
​




br
gsmhase
