Nokia All In One Hardwear Solution 1000%Testad

[eqra1998]

5320 light solution



[eqra1998]

5610 LCD Solution.



[eqra1998]

Nokia n82 " camera ucspected eror



[eqra1998]

Nokia 3110c mic Solution 100%OK



[eqra1998]

Very Strange Problem With 5130(Nokia Logo Then Trun Off)



Very Strange Problem With 5130(Nokia Logo Then Trun Off)

1)flash lhe phone higher version via usb or Fbus

2)usb flashing time computer show usb error?
must check usb connector usb controll driver(remove usb esd)

usb flashing and fbus flash 100% done?but phone same nokia logo then trun off?

B1)open handset then check display connector or change display(display also make this problem)

2)remove camera and power on phone with battery,phone still same problem(nokialogo then trun off)???

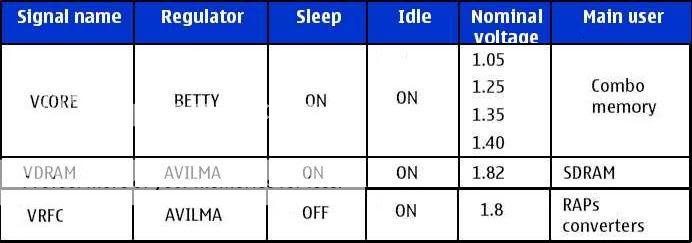

3)check vcore,vio,vdram vrfc volt
this 4 volt controlled by combo ic
vdram,vrfc,vio volt controlled by AVILMA
Vcore controlled by BETTY
this 4 volt is prefect???then one thing is conformed avilma betty working fine

4)reflow or change keypad ic

5)Remove MMC ic

6)BT ic also make this problem(6120 75% nokia trun off bt ic)

7)finaly reflow or change combo ic



[eqra1998]

3110C mmc print missing solution no need mmc ic



[eqra1998]

nokia 3110c camera operation failed 100% OK solution



[eqra1998]

e63 lcd ways....



[eqra1998]

Nokia E52 Fake Charging 100% Tested & Easy Solution



[eqra1998]

6120c light solution



[eqra1998]

1600 lcd light solution..1000000% working



[eqra1998]

2630 no light done ....by new solution



[eqra1998]

1280 no lcd and keypad light



[eqra1998]

5130 no display light and keypad light....done!!!



[thembafire]

pls help me with nokia c5 hardwear power sollution,it vibrates only when you turn it on.
