We're Very proud to announce the release of MFC 1.2.2. This update adds new functionality to your MFC Dongle.
Changelogs for MFC Dongle V1.2.2 ?
Upgrading to new Versions:
iOS 8.0-8.1 Auto V6
V6 Auto Mode has a new radical way to unlock your phone code using HOME button automation. This update does not require any delay setting.
VERY IMPORTANT ! This update requires a more sensitive light detection sensor to work properly!
You can buy a new light sensor from us or you can modify the old light sensor to be more sensitive by changing the resistor on the sensor PCB to 20k ohm resistor. The old sensor model has a 10k ohm resistor in that place. You can buy the resistors from any electronics shop or from a computer/mobile phone/electronics repair center in your area if you don't have an 20k resistor available. Resistor size is not imporant as long as you can fit it on the PCB or on the cable. Also resistor wattage is not important (0.25 W ressitor(1/4) is minimum requirement). Changing the resistor to 20k is also good for the old updates and unlocking of 7.1 phones will be more reliable using the new configuration. Only programing the first code and the Turbo Mode is enough! While unlocking the phone POWER button must always pressed.
When programming the MFC dongle you can set 3 Turbo Modes:
- Test Settings Only
In this mode MFC will never try to send a code to phone, will just reboot the phone as in normal operation so that you can check if all connections are good.
- Auto
In this mode MFC will fist try 1 code, then will try 2 codes and so on until 5 codes. If a Phone Diabled message is encountered the dongle will decrease the number of tries each time by 1 until the message is no longer seen. This will make sure the MFC will find the codes in the fastest time possible without permanently locking the phone by mistake.
- locked By iCloud Web
In this mode MFC will try codes one by one with a very long delay to wait for the unlock to complete because phones in iCloud mode respond slower to good codes.
How to use:
- DO NOT DISCONNECT THE BATTERY OF THE PHONE, this way the phone will never loose the correct time. Wait for phone to exit phone disabled mode (if allready in Phone disabled XX minutes you need to wait until the phone gets out of this mode, then restart the phone manually first )
- Power on the phone normally
- Permanently press the POWER button using a custom tool
- Connect 3 in 1 charging cable to phone and to iPower adaptor.
- Connect the HOME button wires accorting to the specifications in our support section.
- Connect micro usb to iPower adaptor
- Connect MFC Dongle to iPower adaptor and the unlock will start
During unlock some messages are displayed to the user if the phone is not in iCloud lock mode.
The messages start with the current code (XXXX) as following :
XXXX 1 - MFC is CHEcking connections, this is dispalyed only the first time when you connect MFC to phone.
XXXX 2 - MFC is running normally
XXXX 3 - The same code like last time will be sent (this usually happens after Check Connections Or when a code is found and the MFC dongle will try again one by one to confirm the code.
XXXX 4 - An communication error (usually when the phone battery is very low) has been detected. MFC will reTRY
XXXX 7 - MFC is connected in COMputer mode and will not try to send codes
XXXX - Code has been found. You can try to reconnect MFC and see if the code found is really the correct one or has been detected because of a sensor communication error.
Important Note!
Never try to input the code by hand if you want to try some unsure code to test if can unlock the Device, The way you can write the start value by reprogramming the Dongle and do it because if the code is wrong your Device might get disabled.
MFC Dongle Turbo Mode Function Full work for iOS 8 passcode unlock - V6 Auto
MFC Dongle Turbo Mode Function Full work for iOS 8 passcode unlock - V6 Auto - YouTube
Changelogs for MFC Dongle V1.2.2 ?
- Add iOS 8.0-8.1 Auto V6 (World first New Solution Turbo Mode)
- Can Auto Detect Passcode Attempted
- Add new algorithm Auto adjust unlock speed (Per/Reboot input code 1 ~ 5 Times)
- Add iOS 8.0-8.1 Auto V6 TEST (Learning mode)
- Other small reported bugs fixed
Upgrading to new Versions:
- We recommend all customers to upgrade to this latest version 1.2.2. The downloaded version of the software is available now, You can download from support page with valid membership.
iOS 8.0-8.1 Auto V6
V6 Auto Mode has a new radical way to unlock your phone code using HOME button automation. This update does not require any delay setting.
VERY IMPORTANT ! This update requires a more sensitive light detection sensor to work properly!
You can buy a new light sensor from us or you can modify the old light sensor to be more sensitive by changing the resistor on the sensor PCB to 20k ohm resistor. The old sensor model has a 10k ohm resistor in that place. You can buy the resistors from any electronics shop or from a computer/mobile phone/electronics repair center in your area if you don't have an 20k resistor available. Resistor size is not imporant as long as you can fit it on the PCB or on the cable. Also resistor wattage is not important (0.25 W ressitor(1/4) is minimum requirement). Changing the resistor to 20k is also good for the old updates and unlocking of 7.1 phones will be more reliable using the new configuration. Only programing the first code and the Turbo Mode is enough! While unlocking the phone POWER button must always pressed.
When programming the MFC dongle you can set 3 Turbo Modes:
- Test Settings Only
In this mode MFC will never try to send a code to phone, will just reboot the phone as in normal operation so that you can check if all connections are good.
- Auto
In this mode MFC will fist try 1 code, then will try 2 codes and so on until 5 codes. If a Phone Diabled message is encountered the dongle will decrease the number of tries each time by 1 until the message is no longer seen. This will make sure the MFC will find the codes in the fastest time possible without permanently locking the phone by mistake.
- locked By iCloud Web
In this mode MFC will try codes one by one with a very long delay to wait for the unlock to complete because phones in iCloud mode respond slower to good codes.
How to use:
- DO NOT DISCONNECT THE BATTERY OF THE PHONE, this way the phone will never loose the correct time. Wait for phone to exit phone disabled mode (if allready in Phone disabled XX minutes you need to wait until the phone gets out of this mode, then restart the phone manually first )
- Power on the phone normally
- Permanently press the POWER button using a custom tool
- Connect 3 in 1 charging cable to phone and to iPower adaptor.
- Connect the HOME button wires accorting to the specifications in our support section.
- Connect micro usb to iPower adaptor
- Connect MFC Dongle to iPower adaptor and the unlock will start
During unlock some messages are displayed to the user if the phone is not in iCloud lock mode.
The messages start with the current code (XXXX) as following :
XXXX 1 - MFC is CHEcking connections, this is dispalyed only the first time when you connect MFC to phone.
XXXX 2 - MFC is running normally
XXXX 3 - The same code like last time will be sent (this usually happens after Check Connections Or when a code is found and the MFC dongle will try again one by one to confirm the code.
XXXX 4 - An communication error (usually when the phone battery is very low) has been detected. MFC will reTRY
XXXX 7 - MFC is connected in COMputer mode and will not try to send codes
XXXX - Code has been found. You can try to reconnect MFC and see if the code found is really the correct one or has been detected because of a sensor communication error.
Important Note!
Never try to input the code by hand if you want to try some unsure code to test if can unlock the Device, The way you can write the start value by reprogramming the Dongle and do it because if the code is wrong your Device might get disabled.

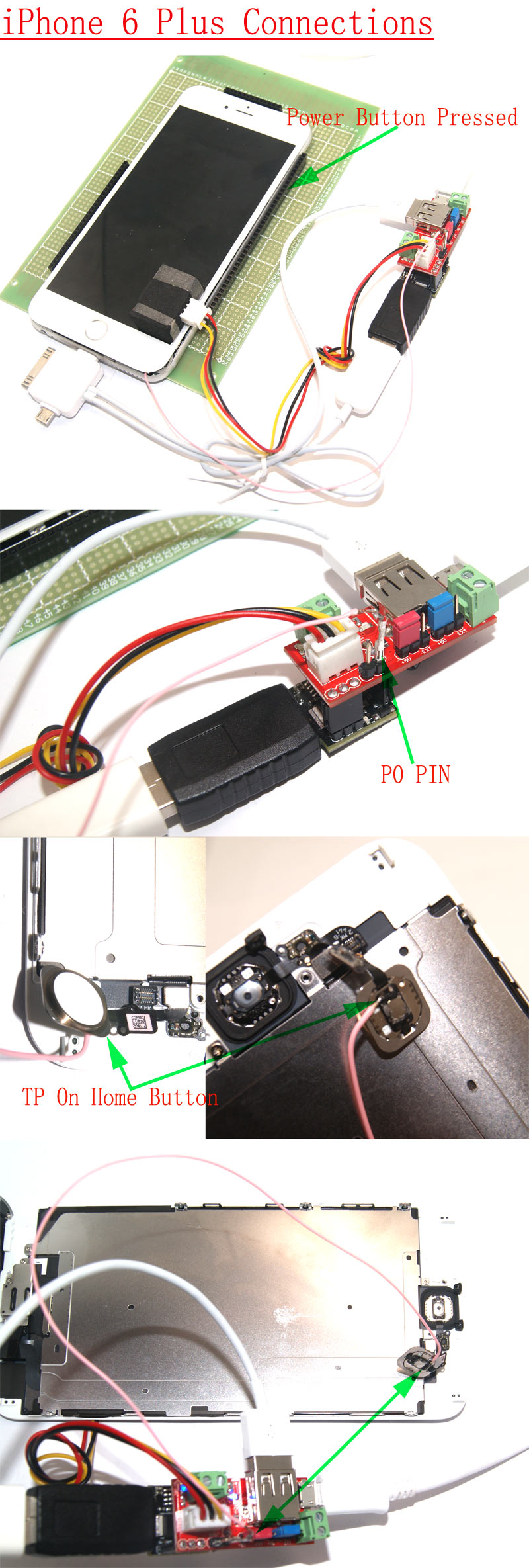

I just make a simple picture to let all people to understand easily :
MFC Dongle Turbo Mode Function Full work for iOS 8 passcode unlock - V6 Auto
MFC Dongle Turbo Mode Function Full work for iOS 8 passcode unlock - V6 Auto - YouTube
