ADDED AND FIXED DIRECT UNLOCK SUPPORT FOR:
[X] ZTE Z331 (ATT_AM_P671B30V1.0.0B17-S)
[X] ZTE F555 / T-Mobile Aspect (TMO_US_P671A91V1.0.0B13-S)
[X] ZTE E821S (VIVO_BR_P671A70V1.0.0B12-S)
[X] ZTE S50 / Skinny (TEL_NZ_P671A70V1.0.1B01-S)
NEW FWS DIRECT UNLOCK ADDED FOR:
[X] Z990, KIS, KIS PRO, BARCELONA, T970, Bouygues Telecom BS 351, E600, SmartTab 7/10
ADDED JTAG PINOUTS AND REPAIR FILES FOR DAMAGED PHONES (ORT JTAG/RIFF) :
[x] Z221, Z331, Z431, F555, F160, F100, E821S
HOW TO REPAIR USING ORT JTAG / GPG ORT ?
[x] SOLDER THE WIRES AND POWER SUPPLY THE PCB OVER USB
[x] START ORT V1.93 AND CONNECT THE PHONE
[x] CHECK 'RAW MODE' AND 'AUTO-ERASE'
[x] SELECT THE PROPER FILE FROM \REPAIR FOLDER (ex. F555_ASPECT_REPAIR_0x00000000_RAW_AUTOERASE_ORT.bi n)
[x] PRESS 'WRITE' AND ENJOY AND REPAIRED PHONE IN SECONDS
NOTE: IF PHONE HAS OTHER FAULTS ( NO IMEI, INCORRECT MENU, RESTARTS) THEN DO THE ABOVE STEPS BUT INSTEAD USE FULL FILES (ex.F555_FULL_RAW_ORT.rar)
-----------------------------------------------------------------------------------------
ALL THE FILES CAN BE DOWNLOADED FROM SUPPORT OR FROM BELLOW LINK:
RapidShare – Secure Data Logistics
-----------------------------------------------------------------------------------------
JTAG PINOUTS
ZTE F555 / T-Mobile Aspect

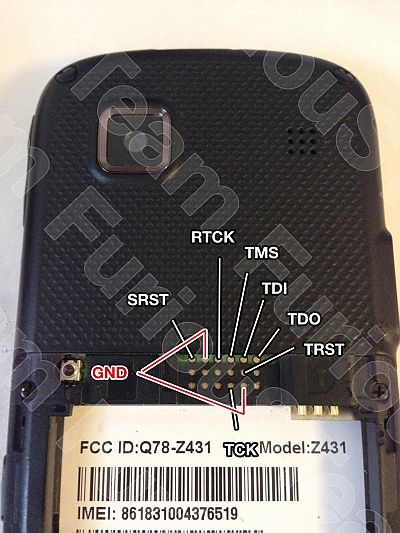

ZTE Z431
E821S_S50_SKINNY_JTAG
