Here Is Some China PINOUTS

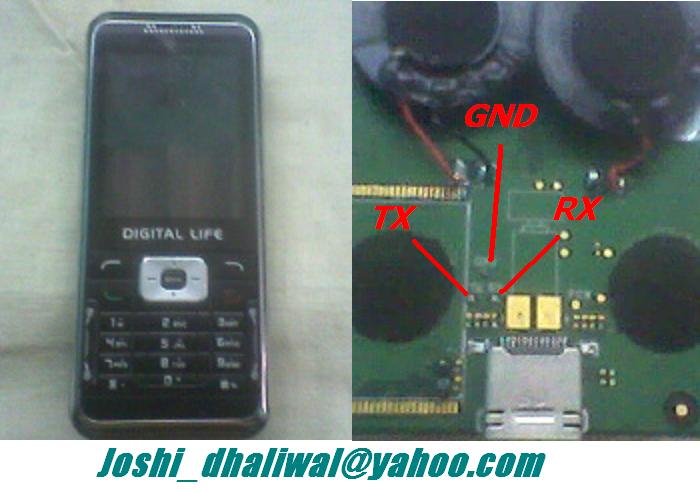

Lawra Well-known Member Staff member Joined Jul 16, 2011 Posts 1,353 Likes 7 Oct 12, 2011 #42 GROUND :10 RX : 6 TX: 1

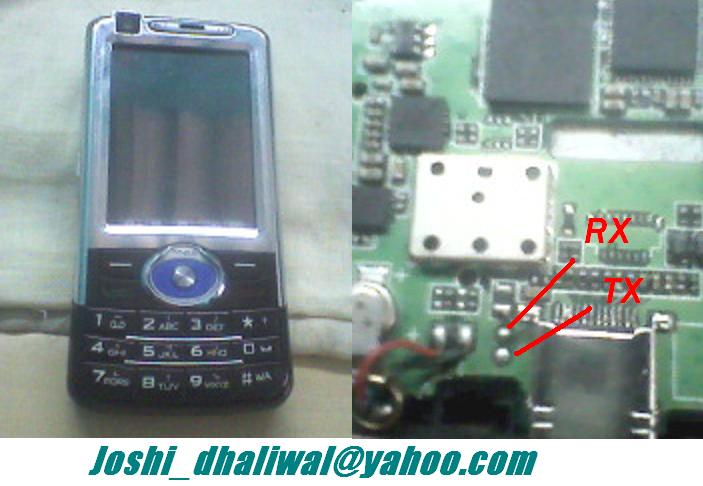

Lawra Well-known Member Staff member Joined Jul 16, 2011 Posts 1,353 Likes 7 Oct 12, 2011 #43 HERE IS WORKING PINOUTS OF DOLIA Q7 RX :7 TX:12 GND:6
Lawra Well-known Member Staff member Joined Jul 16, 2011 Posts 1,353 Likes 7 Oct 12, 2011 #44 HERE IS WORKING PINOUTS OF ZTC P08 RX:12 TX:13 GND:18

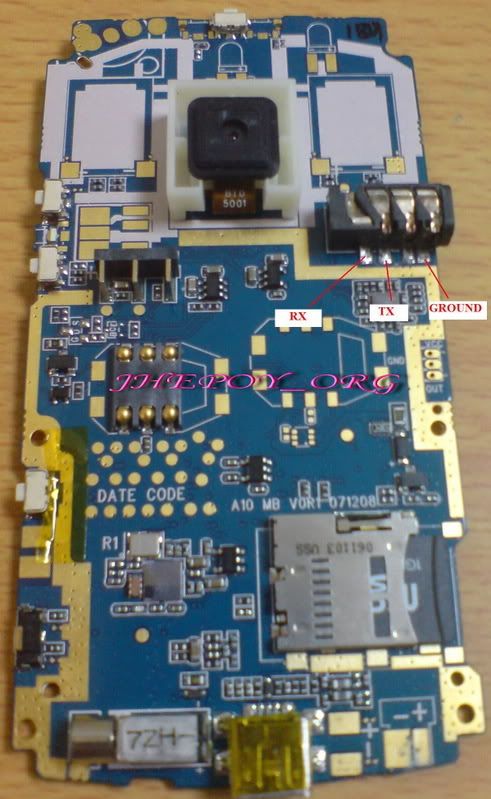

Lawra Well-known Member Staff member Joined Jul 16, 2011 Posts 1,353 Likes 7 Oct 12, 2011 #45 Re: Here Is Some China PINOUTS 1- - - - - - - - - - - - - - - - - - 18 GROUND : 18 RX :12 TX:13
