Disassembly & Reassembly NEW SAMSUNG PDF & VIDEO

[Jinda]

A821 Disassembly & Reassembly.pdf
A821 Disassembly & Reassembly.pdf

A837 Disassembly & Reassembly.pdf
A837 Disassembly & Reassembly.pdf

B520 Disassembly & Reassembly.pdf
B520 Disassembly & Reassembly.pdf

F250 Disassembly & Reassembly.pdf
F250 Disassembly & Reassembly.pdf

F480 TSP_and_LCD_Disassembly_rev1.0.pdf
F480 TSP_and_LCD_Disassembly_rev1.0.pdf

J770 Disassembly & Reassembly.pdf
J770 Disassembly & Reassembly.pdf

J800 Disassembly & Reassembly.pdf
J800 Disassembly & Reassembly.pdf

L700 Disassembly & Reassembly.pdf
L700 Disassembly & Reassembly.pdf

Z800 Disassembly & Reassembly.pdf
Z800 Disassembly & Reassembly.pdf

SGH-F480_Disassembly_090227.wmv
SGH-F480_Disassembly_090227.wmv

GT-C3050_Disassembly_090226.wmv
GT-C3050_Disassembly_090226.wmv

GT-C3110_Disassembly_090122.wmv
GT-C3110_Disassembly_090122.wmv

GT-C5212_Disassembly_090216.wmv
GT-C5212_Disassembly_090216.wmv

GT-E1120_Disassembly_090113.wmv
GT-E1120_Disassembly_090113.wmv

GT-M8800_Disassembly_English.wmv
GT-M8800_Disassembly_English.wmv

GT-S3110_Disassembly_090213.wmv
GT-S3110_Disassembly_090213.wmv

GT-S3310_Disassembly_090320.wmv
GT-S3110_Disassembly_090213.wmv

GT-S3500_Assembly_090209.wmv
GT-S3500_Assembly_090209.wmv

GT-S7350_Disassembly_090314.wmv
GT-S7350_Disassembly_090314.wmv

B500_Disassembly.pdf
http://rapidshare.com/files/17682587...isassembly.pdf

B510_Disassembly.pdf
http://rapidshare.com/files/17682590...isassembly.pdf

B2700_Disassembly.pdf
http://rapidshare.com/files/17682593...isassembly.pdf

D880_Disassembly.pdf
http://rapidshare.com/files/17682597...isassembly.pdf

E950_Disassembly.pdf
http://rapidshare.com/files/17682600...isassembly.pdf

F480_Disassembly.pdf
http://rapidshare.com/files/17682601...isassembly.pdf

F700_Disassembly.pdf
http://rapidshare.com/files/17682605...isassembly.pdf

G810_Disassembly.pdf
http://rapidshare.com/files/17682610...isassembly.pdf

J700_Disassembly.pdf
http://rapidshare.com/files/17682615...isassembly.pdf

J750_Disassembly.pdf
http://rapidshare.com/files/17682618...isassembly.pdf

J770_Disassembly.pdf
http://rapidshare.com/files/17682625...isassembly.pdf

J800_Disassembly.pdf
http://rapidshare.com/files/17682629...isassembly.pdf

L310_Disassembly.pdf
http://rapidshare.com/files/17834545...isassembly.pdf

M110_Disassembly.pdf
http://rapidshare.com/files/17834553...isassembly.pdf

M310_Disassembly.pdf
http://rapidshare.com/files/17834557...isassembly.pdf

M3510_Disassembly.pdf
http://rapidshare.com/files/17682630...isassembly.pdf

S3600_Disassembly.pdf
http://rapidshare.com/files/17682633...isassembly.pdf

S7330_Disassembly.pdf
http://rapidshare.com/files/17682636...isassembly.pdf

U900_Disassembly.pdf
http://rapidshare.com/files/17682639...isassembly.pdf



[Jinda]

Samsung disassembly

Samsung Blade S5600 disassembly


Tools required: Phillips screwdriver, plastic tool such as a guitar plectrum or credit card.

• Remove your back cover, battery, sim and memory card. Remove the six screws you can see, circled below.

• Run something like a credit card around the join of the battery compartment to release it from the rest of the phone.

• With the battery compartment removed your phone should look like below. Remove the two screws, circled in red. A ribbon connector, circled below in blue, needs to be disconnected. It attaches like a plug and socket. Just lever this up to unplug. Next, the micro-switches for the volume, camera and phone lock buttons need to be released from the side of the phone. They're stuck to the side of the phone with double sided tape and will peel away quite easily. Please note they will still be attached to the phone's circuit board so take care not to damage those connections.

• You can now lift the metal plate away from the phone, as shown below. Another ribbon connector, circled in blue, needs to be detached. Again, this attaches like a plug and socket. Just lever it up to unplug. A second ribbon, circled in red also needs to be detached. This connects in a slightly different way to previous ribbons. Look at the socket where the ribbon enters and you'll see a black latch. Flick this up and the ribbon will be loose and can be pulled away from the socket. The ringer, circled in white, is stuck down with double sided tape. This needs to be levered up until it releases. Note that it will still be connected to the circuit board by a wire. Make sure you don't damage this wire. A couple of clips at the bottom of the phone hold the circuit board and front cover together. Pry the front cover away front the circuit board at the point indicated by the arrow and this should release the circuit board.

• Lift the circuit board away from the front cover but note that it will still be attached at the other end so it cannot be removed completely just yet.

• Below you can see the underside of the circuit board. Two clips, circled in white, need to be released. Just push them up with your screwdriver.

• The circuit board should now be free.

• Slide your plastic tool under the metal plate in order to release it.

• With the metal plate released your phone should look like below.

• Now carefully slide your plastic tool under the very edge of the LCD screen. Go all the way round the edge of the screen and it will release. It's held in place lightly by a sticky gasket.

• You should now have the LCD screen removed. Reverse the whole procedure for reassembly.



[Jinda]

Samsung C3050 disassembly

Tools required: Phillips screwdriver, plastic tool such as a guitar plectrum or credit card.

• Remove your back cover, battery, sim and memory card. Four screws need to be removed, circled below.

• Run something like a credit card around the join of the battery compartment to release it from the rest of the phone.

• With the battery compartment removed your phone should look like below. A ribbon connector (circled) needs to be disconnected. It attaches like a plug and socket. Just lever this up to unplug.

• Pull the circuit board away from the phone. It will still be attached by a ribbon, circled below. Again, it attaches like a plug and socket. Just lever this away from the circuit board to unplug.

• With the circuit board removed, your phone should look like below. Next remove the four circled screws. You can then lift away the part held in place by the screws.

• Your phone should now look like below. Now remove the two circled screws.

• Move the slide up and remove the two screws you can see.

• Next wedge something like a credit card under the metal part at the point shown below. Do the same on the other side. You should feel the part release slightly.

• Now, starting near the top of the phone, run your credit card along the join of the front cover in order to separate the phone into two.

• Your phone should now look like below. Circled is a ribbon connector. This connects in a slightly different way to previous ribbons. Just flick the brown latch up and pull the ribbon away from the circuit board. It'll simply slide out.

• Below you see the ribbon disconnected at one end. The other end, with the camera, speaker and ringer attached is held in place lightly with double sided tape. Just lever these parts away from the phone.

• With the ribbon removed your phone should look like below. Now disconnect the other ribbon you can see in exactly the same way as the last.

• Your phone should now look like below. Carefully lever the screen out around its edges. It's held in place lightly with double sided tape.

​

• You should now have the LCD screen removed. Reverse the whole procedure for reassembly.



[Jinda]

Samsung D900i disassembly

Tools required: Phillips size 0 screwdriver

• First remove the battery cover and battery. Remove the two rubber stoppers at the bottom of the phone (circled) and you now have access to six screws in total. Remove these screws.

​

• You can now remove back part of the phone. It should come away from the phone with little force.

​

• You should now have the back part removed, like below.

• Now remove the two side buttons and make sure the port covers on the side of the phone are open. A ribbon connector (circled) also needs to be released. It attaches like a plug and socket so simply lift it away from the phone to unplug it (it is shown already unplugged in the photo below).

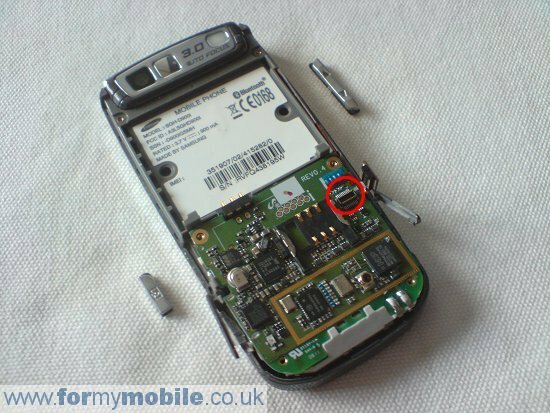

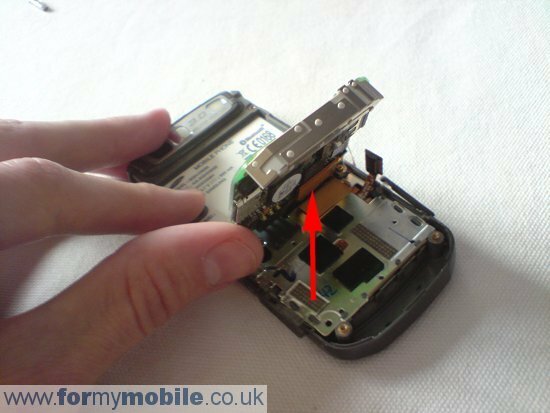

• Lift the green circuit board from to bottom to reveal another ribbon (pointed to in the photo below). Again, this attaches like a plug and socket. Simply pull the connector away from the circuit board to unplug it

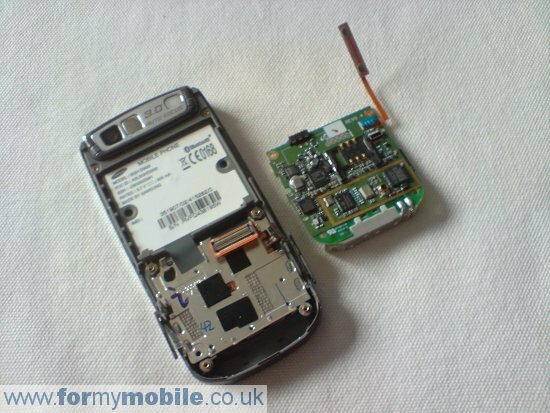

• Once you've disconnected the ribbon in the stage above you can remove the circuit board and your phone should now look like the picture below.

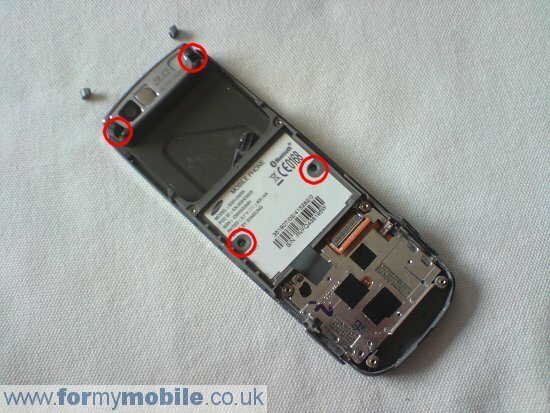

• Now open the slide. Remove the two rubber stoppers at the top of the phone and you'll have access to two more screws. Remove these and the two screws you can access in the battery compartment (all circled).

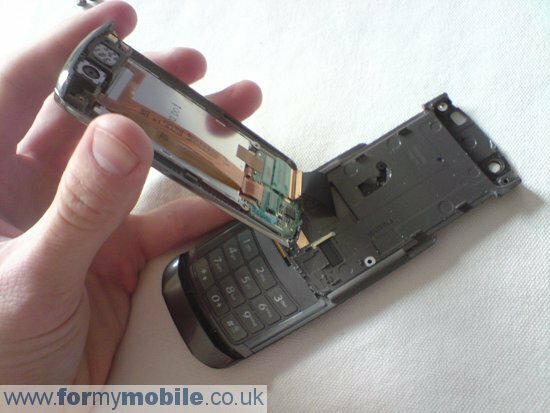

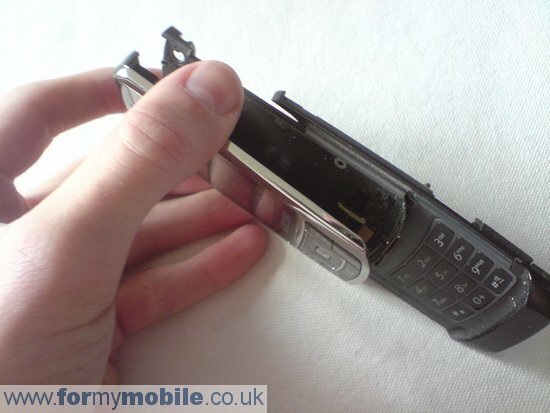

• You can now remove the front cover. It will still be attached by a ribbon, so be careful.

• Flip the front cover over so you can access the next ribbon.

• To detach this ribbon, first remove the green tape, then flip back the brown hinge, which is indicated below. The ribbon then simply slides out. Take note of how this ribbon is attached as it will help you when you put the phone back together.

• The image below shows the ribbon now detached.

​

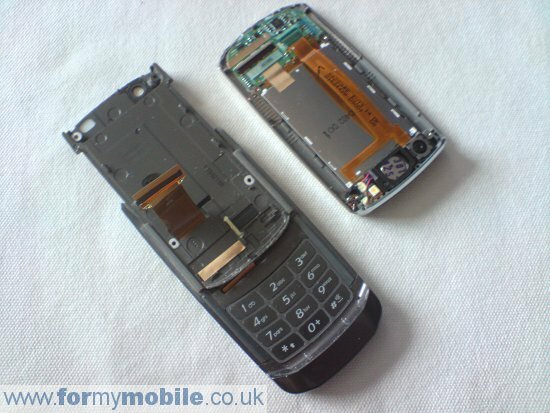

• Your phone should now be in two parts, as shown below.

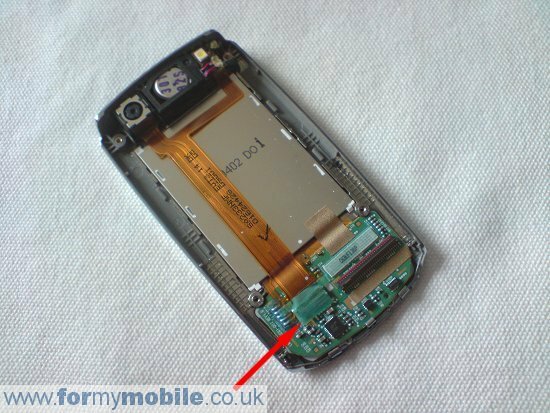

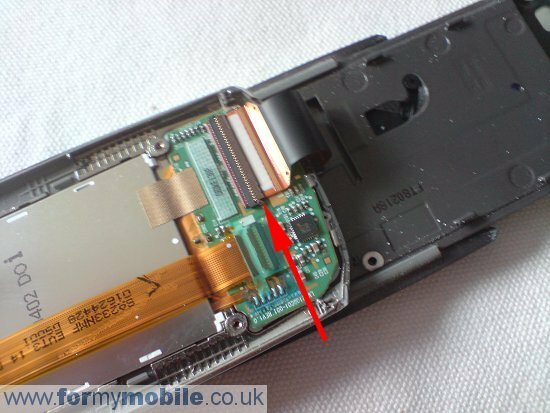

• The next ribbon, indicated by the arrow, is covered by some green tape. Remove this. This ribbon attaches like the previous one, so flip the hinge and slide the ribbon out.

• The image below shows the ribbon once it has been detached.

• Lift the LCD away from the front cover, starting at the bottom. The LCD is held in place quite firmly with double sided tape so you need to peel it away slowly but with force.

• You should now have removed the old LCD screen. Replace with new and reverse the whole procedure for reassembly.



[Jinda]

Samsung E900 disassembly

Tools required: Phillips size 0 screwdriver, plastic tool such as a credit card

• Remove your back cover, battery, sim and memory card. Remove the four screws you can see.

• Turn the phone over and remove the two circled stickers to reveal two more screws. Remove these screws.

• Lift the back cover away at the bottom, then push in the direction shown by the arrow and the back cover will release. Be careful as the back cover is still attached by some wires (see the next photo).

• Lift the back cover to one side and you'll see a connector. This attaches like a plug and socket. Simply lift it up to unplug.

• The back cover is now removed. The ringer, circled, is lightly stuck down with double sided tape. Carefully lift this up. Remove the two side buttons, indicated by the arrows, and lift the buttons underneath out of their slots.

• The photo below shows the ringer and buttons detached. The green circuit board should now be loose. Lift it away from the rest of the phone.

• The circuit board will still be attached by a ribbon. The connector has a black hinge which you need to flick over to release the ribbon.

• Your phone should now look like below. The next layer of the phone should now be loose and can be removed.

• Remove the two circled stickers, at the top of the phone, to reveal two more screws. Remove these and the other two screws.

• Your phone should now look like below.

• Lift the screen away from the phone. The screen is stuck down lightly with double sided tape.

• Now disconnect the two ribbons, circled. They have a hinge, like the last one.

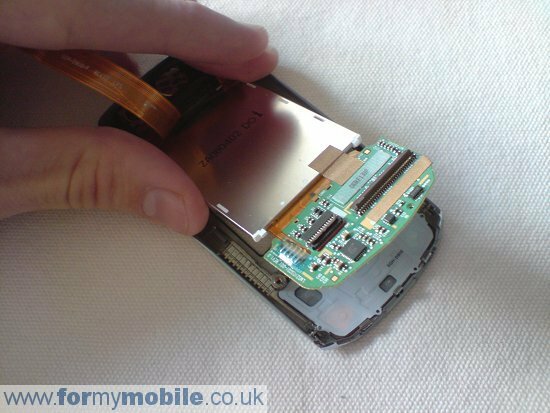

• Turn the LCD screen over and detach the green circuit board. It will be stuck down quite firmly. Slide something like a credit card in-between this and the LCD screen to separate them. Your LCD should now look like below. Reverse the whole procedure for reassembly.



[Jinda]

Samsung E590 disassembly

Tools required: Phillips size 0 screwdriver

• First remove the battery cover & battery. Remove the four screws you see. Note that the silver screw goes in the bottom right slot

• Run a plastic shim like a guitar plectrum or credit card all the way around the camera surround to unclip it, allowing its removal.

• Your phone will now look like below. Now remove the two screws you can see at the top of the phone.

• Run your fingernail around the join of the front cover to loosen this part. Don't try and pull the front cover off though (see the next stage)

• The front cover will still be attached by two wires connected to the speaker at the top of the phone so just lift to cover like below rather than trying to remove it completely.

• You can now lift the screen. It's attached by a series of spot solder so you will need to solder your new screen on. Reverse the whole procedure for reassembly



[Jinda]

Samsung B3410 disassembly


Tools required: Phillips screwdriver, plastic tool such as a guitar plectrum or credit card.

• Remove your back cover, battery, sim and memory card. Six screws need to be removed, circled below.

• Run something like a credit card around the join of the battery compartment to release it from the rest of the phone.

• With the battery compartment removed your phone should look like below. Now remove the two circled screws and you'll be able to lift away the metal plate with the identification sticker on.

• Your phone should now look like below. A ribbon connector needs to be detached (circled). This attaches like a plug and socket. Just lever it up to unplug. You can now lift the circuit board away from the rest of the phone.

• With the circuit board removed your phone should look like below. Remove the eight screws you can see. These screws hold the slide part in place.

• You can now lift the slide part away from the rest of the phone, as shown below. Four screws now need to be removed. The two on the left are covered with black stickers which can be easily removed.

• Now run your plastic tool all the way round the join of the front cover in order to release it.

• Your phone should now look like below. Three ribbons need to be disconnected. The two circled left and right attach like a plug and socket. Just lever each up to unplug. The ribbon in the middle has a different connection. To release it just flick the black latch up and pull the ribbon cable away from its socket. You can now lever the LCD screen out of the front cover.

• Below you can see the LCD screen removed. Turn turn the screen over and remove the ribbon attached to the back. It's just held in place with double sided tape.

• Below you can see the ribbon and LCD screen having been separated. Reverse the whole procedure for reassembly.



[Jinda]

Samsung P520 Armani disassembly


Tools required: Phillips size 0 screwdriver, plastic tool such as a guitar plectrum or credit card.

• Remove your back cover, battery, sim and memory card. Remove the four screws (circled) and then two screws on each side, indicated by the arrows.

• Run your plastic tool around the join of the battery compartment to release it.

• Your phone should now look like below. Note that when you remove the battery compartment two of the buttons on the side will also fall out (shown in the picture below). The circled connector needs to be disconnected. It attaches like a plug and socket. Just lever it up to unplug. Also remove the two circled screws.

• Now pull the circuit board towards you. It'll still be connected by a ribbon (circled). Remove the green tape then flick the black latch up and pull the ribbon away.

• Your phone should now look like below. Remove the two screws you can see.

• Now, starting at the bottom of the phone, pull the chrome bezel away from the main body at the phone.

• Your phone should now look like below. Lift the keypad away from the phone (it'll be loose).

• Another ribbon (circled) needs to be disconnected. Remove the green tape then flick the black latch up and pull the ribbon back.

• Turn your phone over the slide your plastic tool in-between the grey part at the screen in order to separate them.

• Your phone should now look like below.

• Now slide your plastic tool in-between the front of the phone and the LCD screen. The LCD screen will be held in place with double sided tape and a little force is required. Please note: at this stage that the front of the phone has two visible layers. There's the display window, which is the top layer, then the touch screen underneath. These layers are stuck together and should not be separated. You are only trying to separate the LCD screen from the front of the phone.

• You should now have the LCD screen removed. Reverse the whole procedure for reassembly.



[Jinda]

Samsung G600 disassembly

Tools required: Phillips size 0 screwdriver, plastic tool such as a guitar plectrum or credit card

• Remove your back cover, battery, sim and memory card. Remove the six screws circled (two at the bottom are covered by rubber stoppers which are easily removed). You can now remove the battery compartment.

​

• Below you can see the battery cover removed. You now need to disconnect the circled ribbon connector. It attaches like a plug and socket. Simply lift the connector up to unplug it.

• Below you can see the unplugged connector and the camera and volume buttons, which have been removed.

• Lift the circuit board up to reveal another connector, indicated by the arrow. It attaches like the last one. Unplug this.

• You can now remove the circuit board. Note that the ribbon running along the right of the circuit board, with the volume buttons at the end, is lightly stuck down with a tacky glue or double sided tape.

• Remove the grey part shown below. Note that the ribbon with the camera button at the end is stuck down lightly. Next remove the four circled screws.

• Part of the slider can now be removed, as shown below. Next remove the two rubber stoppers at the top of the phone to reveal two more screws. Remove the four circled screws.

• Remove the ribbon which is stuck to the black rectangle, indicated below. It'll just peel back.

• Run your plastic tool all the way around the join of the front cover to unclip it.

• Your phone should now look like below.

• Lift the screen away from the phone at the point indicated by the screwdriver and on the opposite side. The screen is stuck down lightly with double sided tape.

• You should now have the LCD removed.

• Turn the LCD screen over and remove all the green tape you see. You now need to detach a number or ribbons. The ribbon circled attaches like a plug and socket. All the other ribbons have a hinge which you need to flick up to release.

• Your LCD should now look like below. Reverse the whole procedure for reassembly.



[Jinda]

Samsung J600 disassembly


Tools required: Phillips size 0 screwdriver, plastic tool such as a credit card or guitar plectrum

• Remove your back cover, battery, sim etc. Remove the four screws you can see.

• Remove the Samsung sticker, as shown below. Now remove the screw you can see.

• You can now remove the battery compartment, as shown below. You may need to run your plastic tool around the join of the housing to release it. Next you need to disconnect the ribbon, circled. This attaches like a plug and socket. Simply lift the connector up, away from the circuit board to unplug it. Two ribbons also run along each side of the phone. These are stuck down lightly with double sided tape and simply peel away.

• Lift the green circuit board back, as shown below, to reveal another ribbon connector (circled). Again, this attaches like a plug and socket. Simply pull the connector away from the circuit board to unplug it.

• You can now remove the circuit board, as shown below.

• Remove the identification sticker to reveal six black screws. Remove these and you can then remove the next layer of the phone, sliding the ribbon through the gap as you do so.

• Your phone should now look like below. Remove the two silver screws that hold the black slide mechanism in place. There are also two black stoppers below the screws which need to be removed. They can be levered out.

• Move the slide mechanism to the top to reveal two more black screws which need to be removed. You also need to remove two rubber stoppers at the top of the phone (circled) and then the two screws underneath.

• Now run your plastic tool around the join of the housing to separate the phone into two parts, as shown below. The three circled parts need to be peeled back carefully (they're stuck down with double sided tape).

• Pull the LCD screen away from the front cover. Now released the circled ribbon. To do so, flick the black latch up and then pull the ribbon away.

• You should now have the LCD screen removed. Reverse the whole procedure for reassembly.



[Jinda]

Samsung J700 disassembly


Tools required: Phillips screwdriver, plastic tool such as a guitar plectrum or credit card.

• Remove your back cover, battery, sim and memory card. Remove the four screws you can see.

• Peel back the sticker shown in the picture below. You may need something with a thin, sharp point to peel the sticker back with. Two rubber stoppers (circled) need to be levered out to reveal two more screws that must be removed.

• Run your plastic tool along the join of the battery compartment to separate the phone into two halves, as shown below. Next you need to disconnect the ribbon, circled right. This attaches like a plug and socket. Simply lift the connector up, away from the circuit board to unplug it. Remove the screw, circled left. You can now lift the green circuit board away from the phone. A little force is required.

• You should now have the circuit board removed, like below. Note that a ribbon, circled, will have disconnected when you removed the circuit board. Again, this attaches like a plug and socket.

• Remove the identification sticker, as shown below. Remove the volume button (circled) which will be loose. The buttons underneath will be lightly stuck to the side of the phone and need to be peeled away. Lever off the grey part, indicated by the arrow.

• Your phone should now look like below. Remove the four screws you have access to (one is under the ribbon cable).

• You should now be able to separate the phone into two parts, as shown below. Two rubber stoppers need to be levered out to reveal two screws. Remove these plus the two others screws you see.

• Run your credit card around the join of the housing to release it. Once you have the two parts separated as far as shown below, pull in the direction shown by the arrows.

• Your phone should now look like below. Pull the little metal bars in the direction shown by the arrows.

• Lever out the camera, speaker and ringer (circled). They'll be stuck down with double sided tape. Lever out the part indicated by the arrow. Slide your plastic tool under the green circuit board to release the LCD screen.

• You should now have the LCD screen removed, as shown below.

• Turn the screen over. Remove the green tape at the top. Now release the circled ribbons. To do so, flick the black latches up and
  then pull each ribbon away.

• The camera and flex ribbon, which you've just disconnected need to be connected to the board of your new LCD screen. Reverse the whole procedure for reassembly.
