C1-01 no light/tested solution here and clear procedure here

[..::khokon::..]

[No message]



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

action here in the picture:

1st action:
i try for this solution for the simple procedure:



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

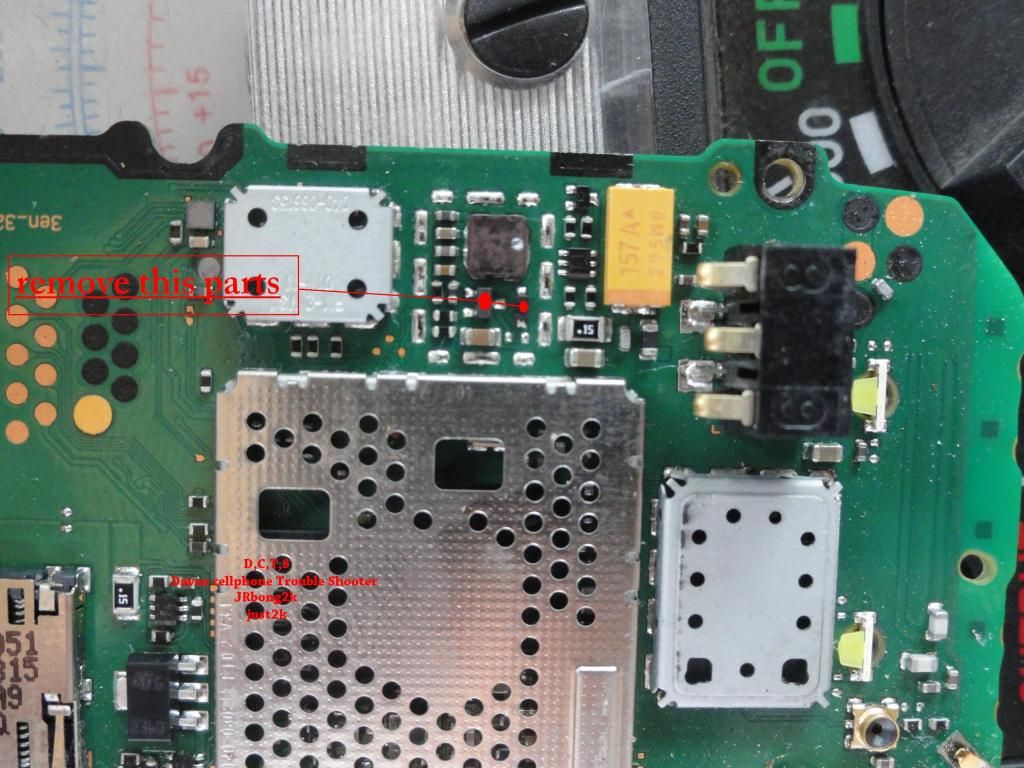

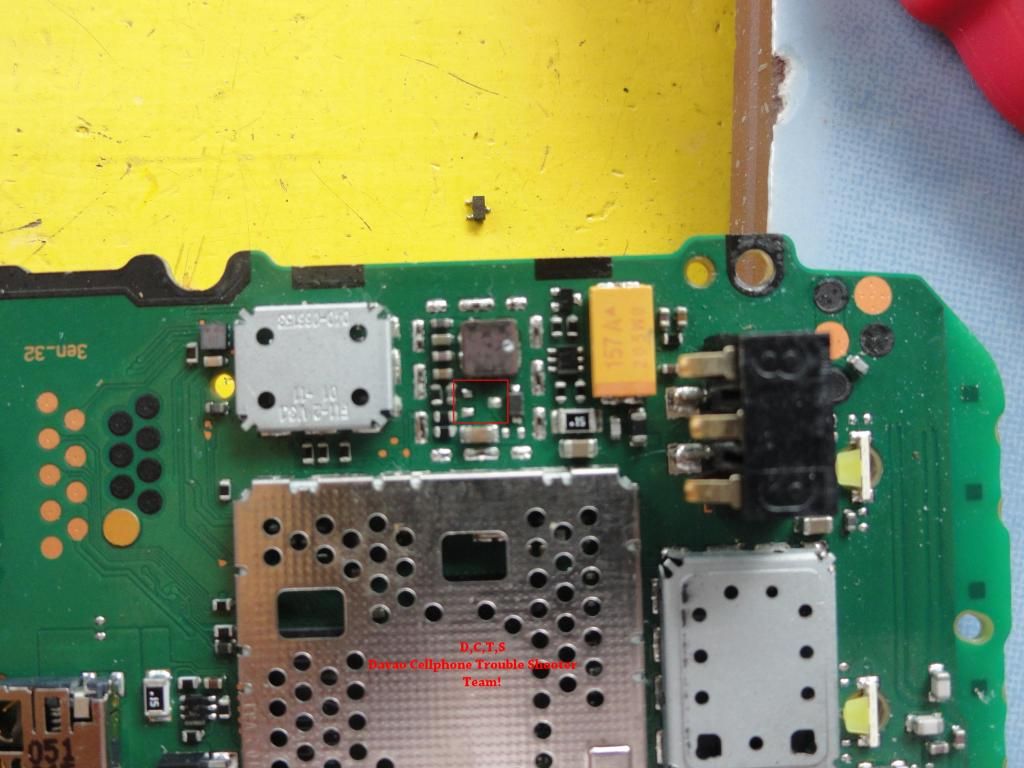

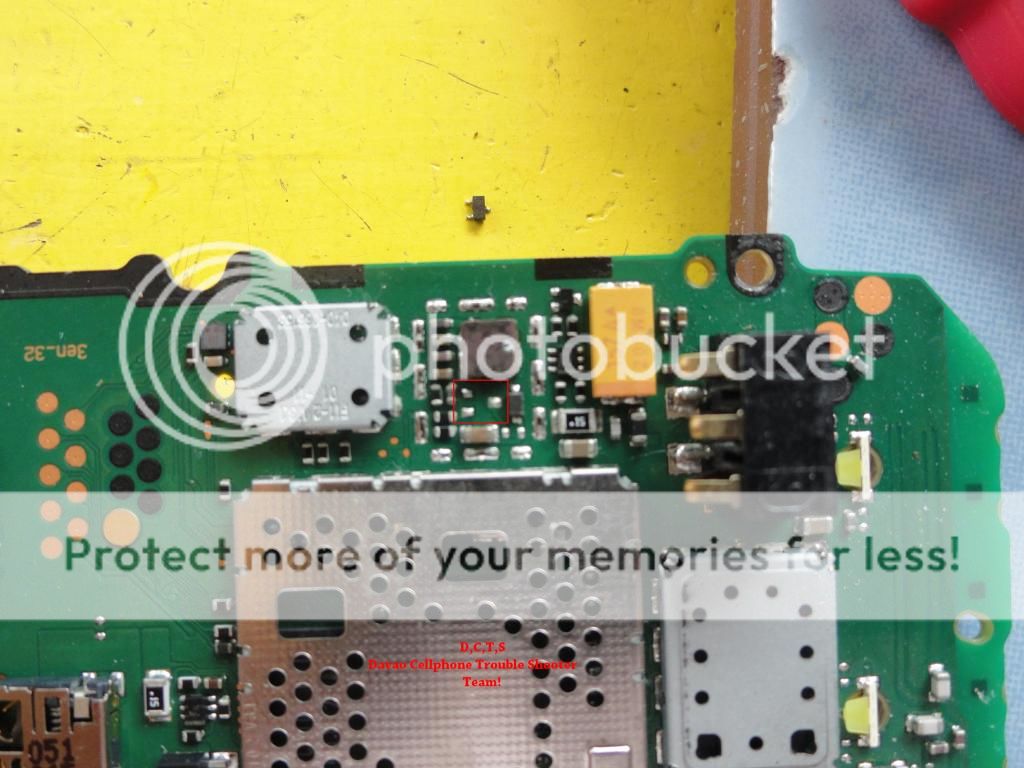

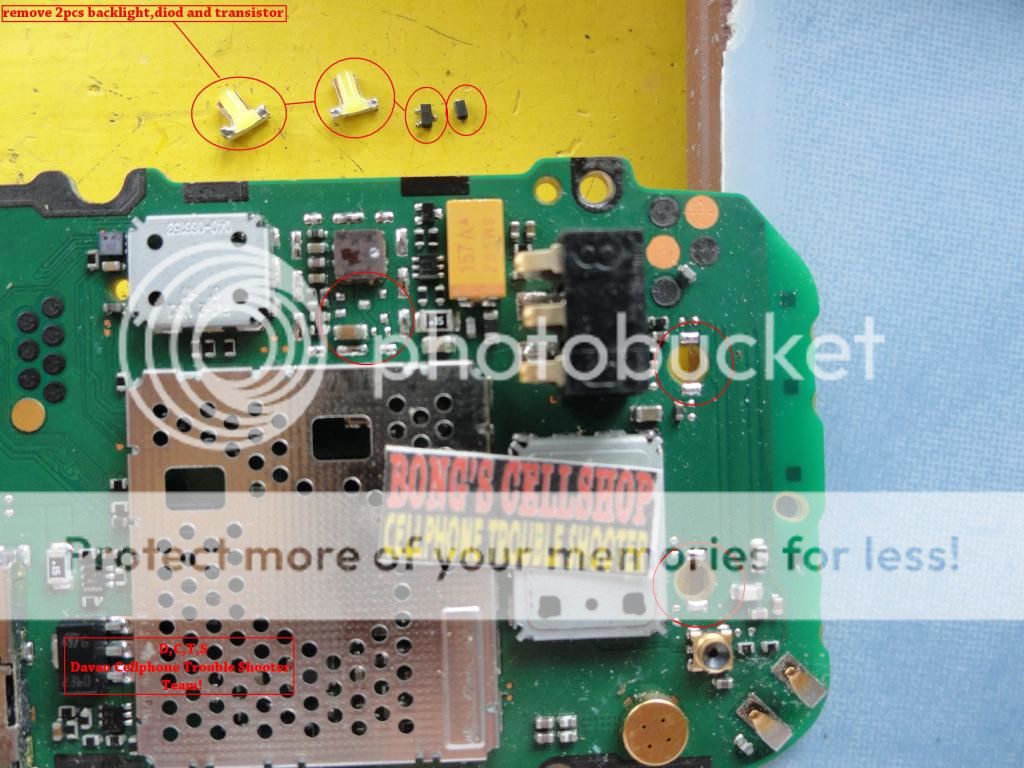

remove that part as shown in the picture.



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

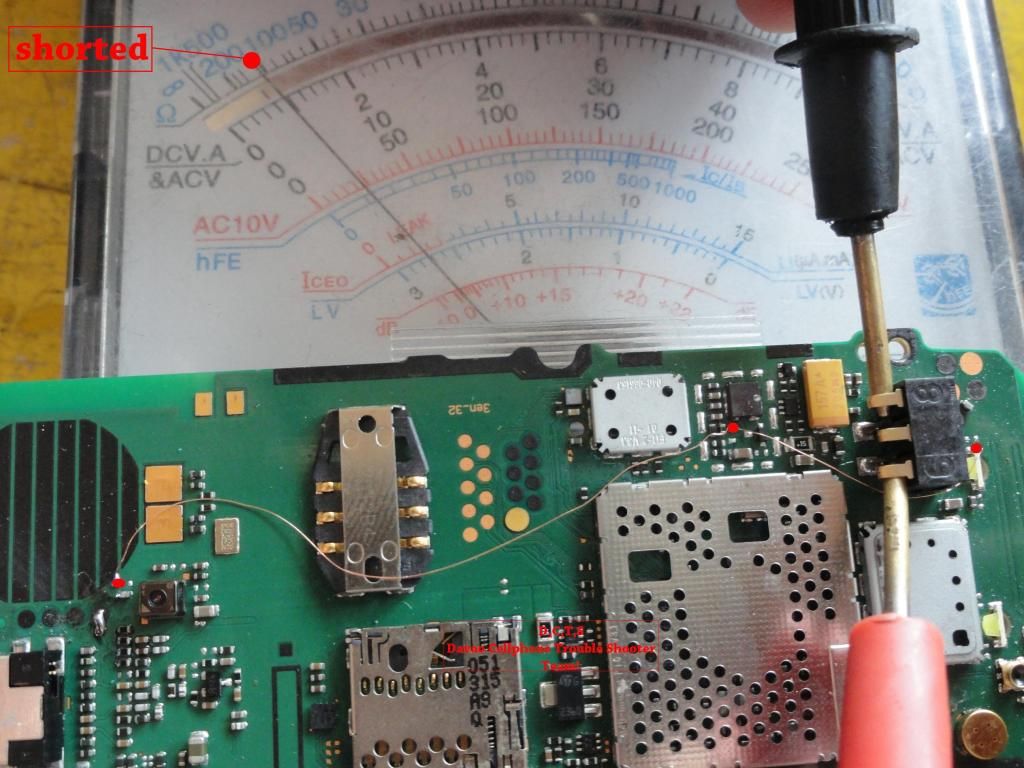

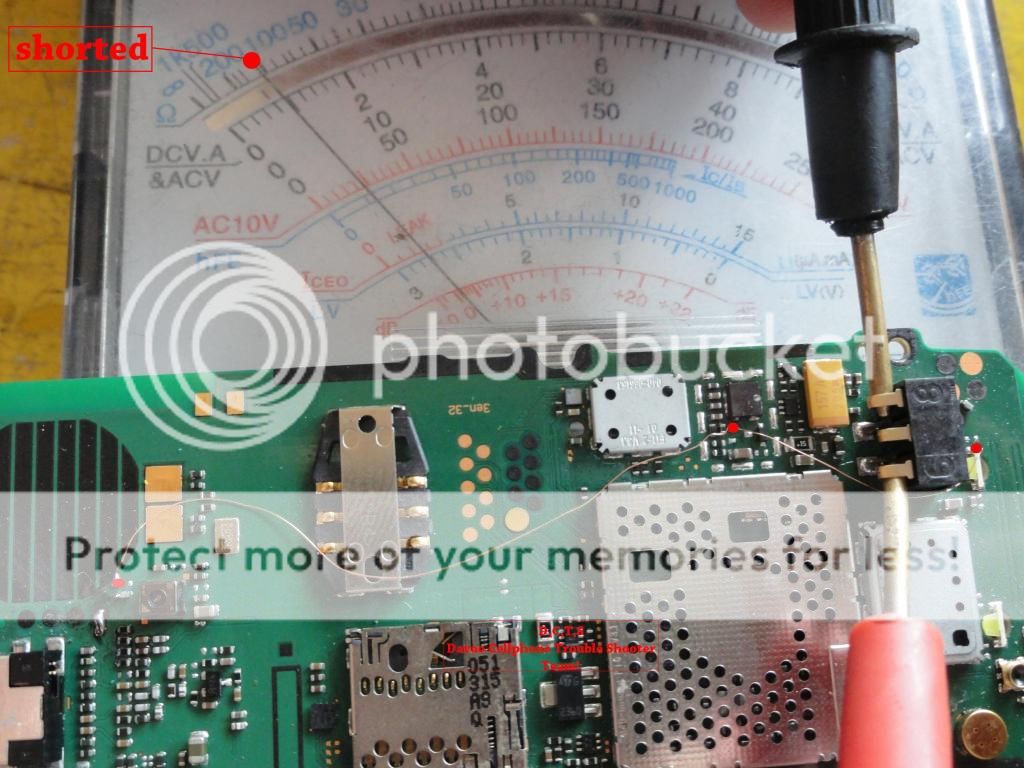

sadly have a problem phone shorted.



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

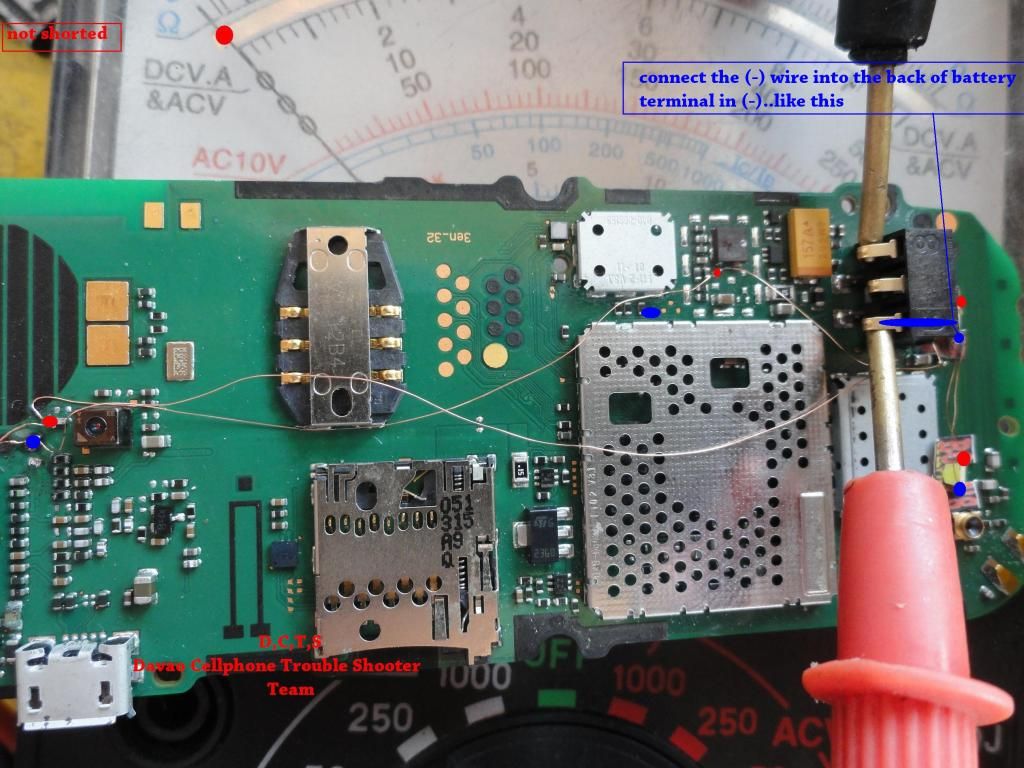

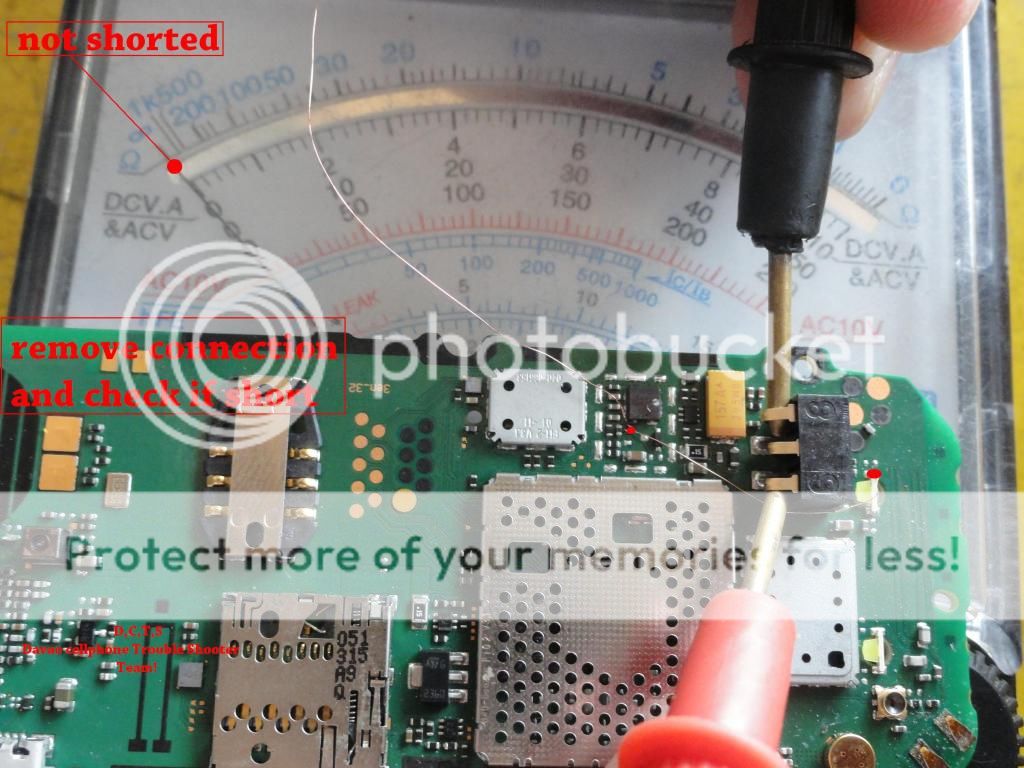

I try to remove the connection in the top if still shorted or not.



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

job not Done:

so i decide to another procedure in my old Thread
GSMPioneer
final action here:



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

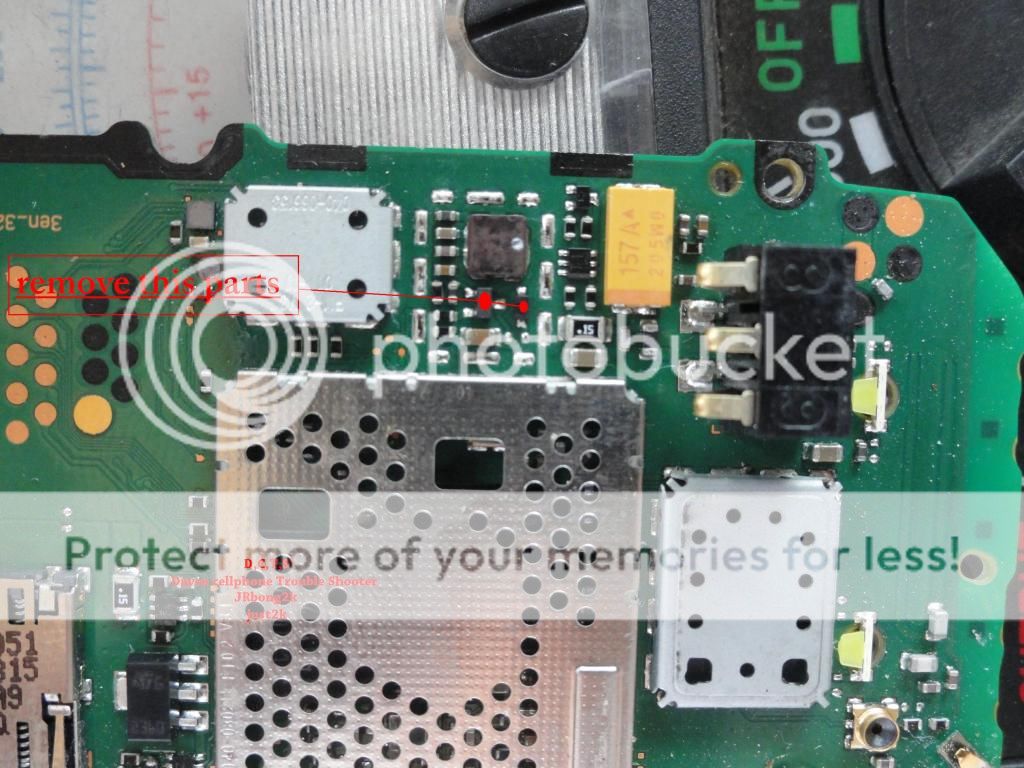

and remove all this parts:



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

do this job in color coding:



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

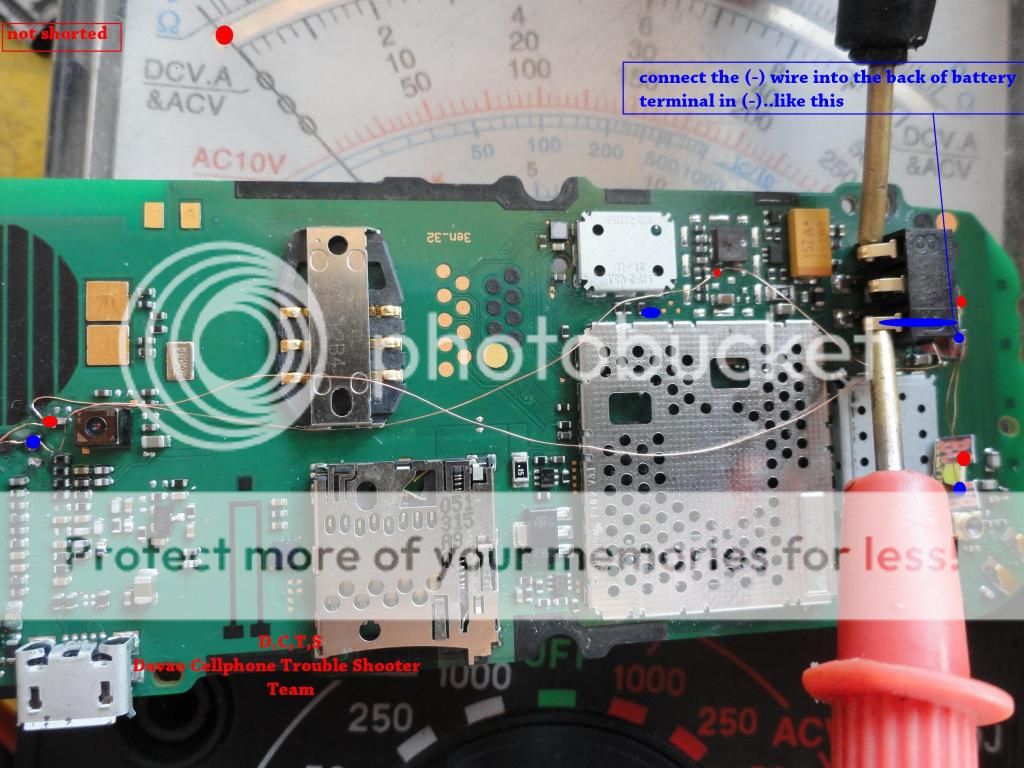

LCD CONNECTION Here



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

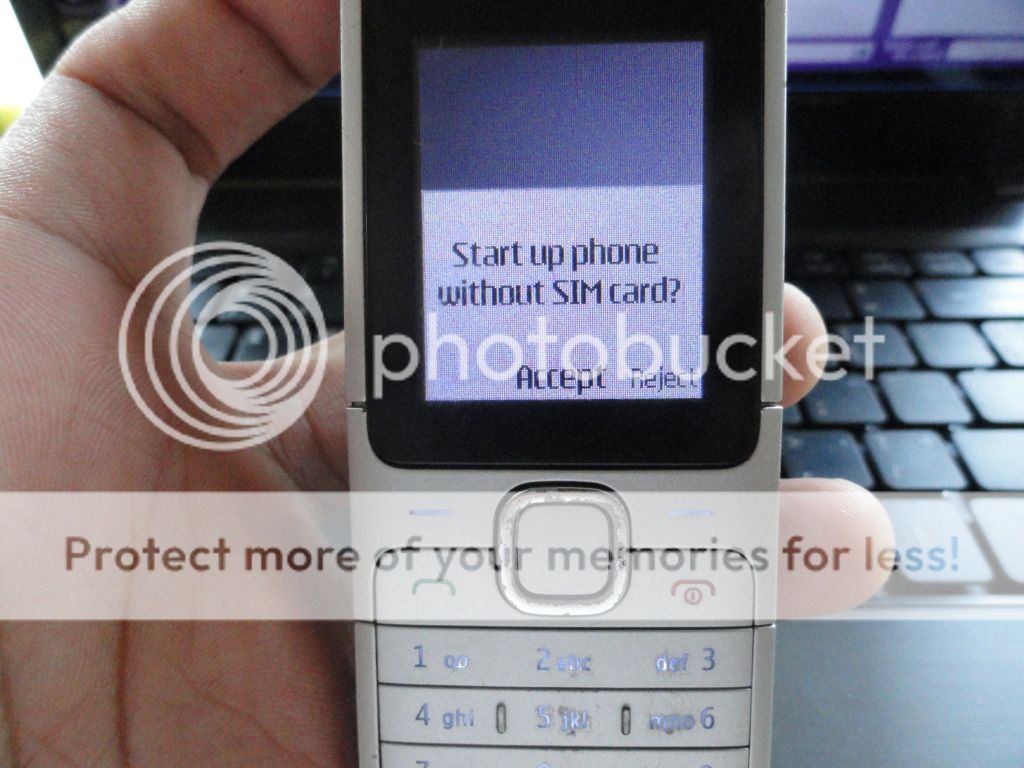

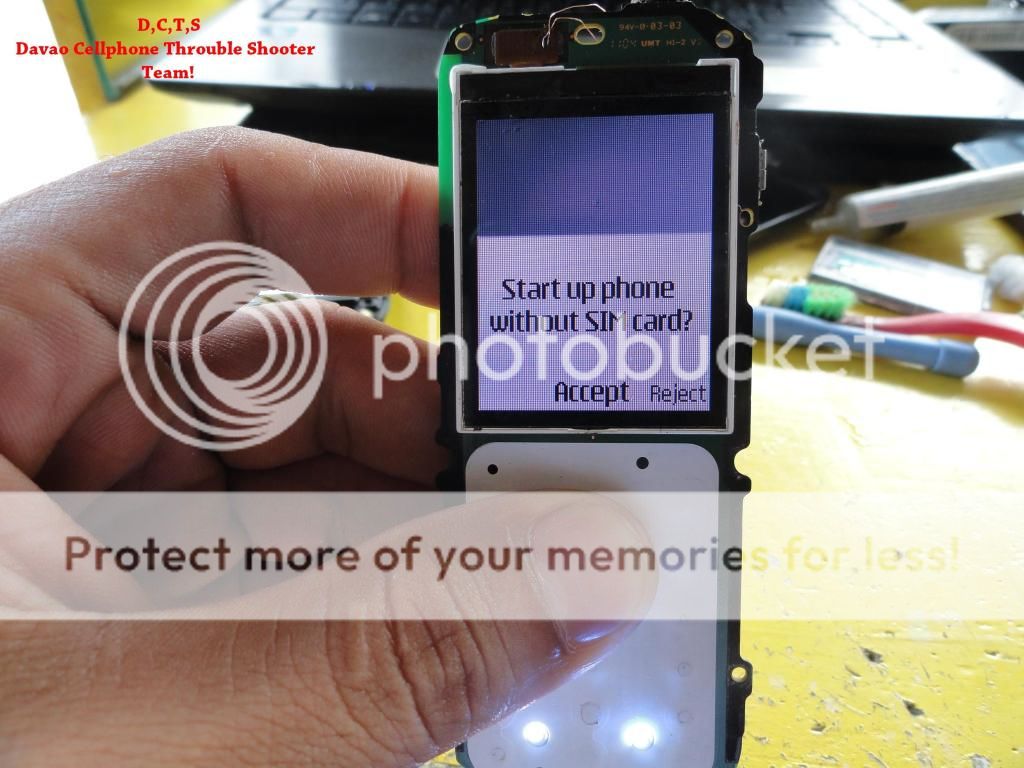

and now here the result:



[..::khokon::..]

answer: C1-01 no light/tested solution here and clear procedure here

I hope it will help...



[shorab_73]

answer: C1-01 no light/tested solution here and clear procedure here

​
